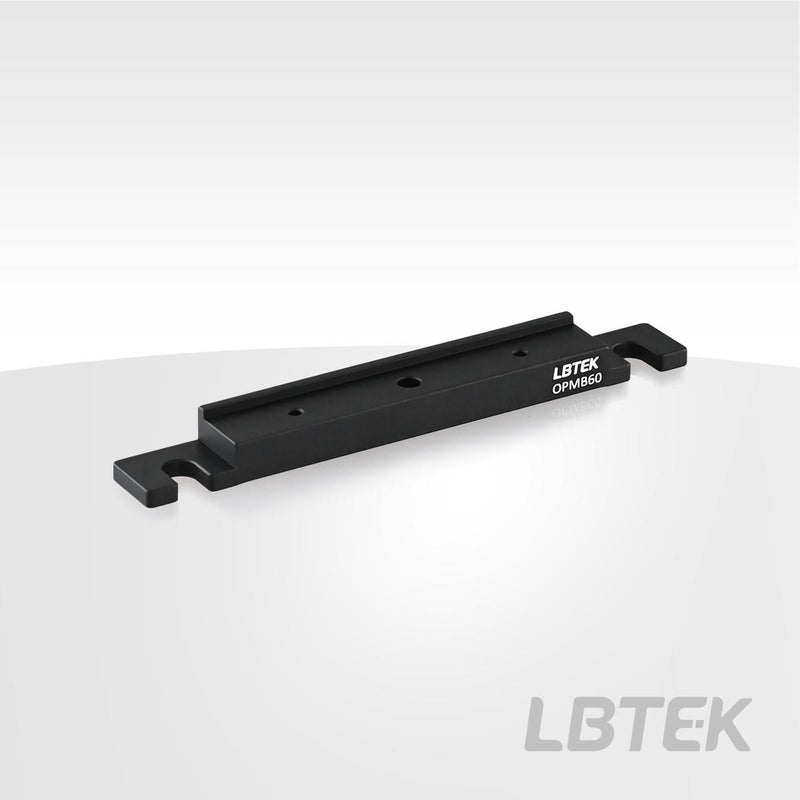

60 mm coaxial system mounting base OPMB60
✔ In Stock — Ships Today
The LBTEK 60 mm coaxial mounting base allows for the installation of a 60 mm coaxial plate onto an optical table or breadboard through two M6 slotted holes. The OPMB60 features an M4 countersunk hole at the bottom, which can be connected to the OPB-12.5B using the included M4*12 cylindrical head hex socket screw. Each base is equipped with a raised edge to prevent the coaxial plate from rotating under force.
Key Features
- Low-profile, horizontal mounting
- Converts 60 mm coaxial plates to optical table or breadboard
- Compatible with 60 mm coaxial systems
Application
60 mm coaxial plate OPB-12.5B mounted on a 60 mm coaxial mounting base
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Compatible with coaxial system specifications | 60 mm coaxial system |
| Mounting Hardware | M4/1 piece, M6/2 pieces |
| Weight | 34 g |
| Attribute 2130 | OPB-12.5B |
| Dimensions | 120 mm×15 mm×10.8 mm |
| Mounting hole | 2 M6 threaded holes, 1 M4 countersunk hole slot |
