Dovetail 60mm coaxial system mounting base — Model CMS-11
✔ In Stock — Ships Today

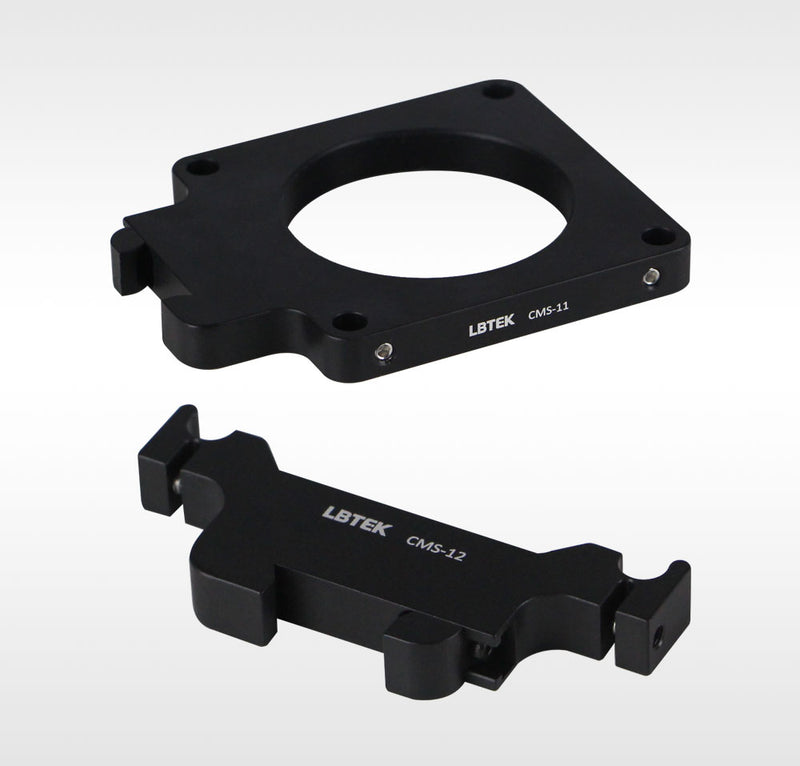

LBTEK Dovetail 60 mm Coaxial System Mount is designed for constructing 60 mm coaxial systems along dovetail rails. The dovetail clamping mechanism at the base allows easy insertion at any point along the rail and can be secured using M2 hex screws. The coaxial plate CMS-11 features a central SM2 internal thread for direct mounting of optical components up to 50.8 mm in diameter and 4 mm in thickness, with four M4 set screws on the side for securing Ø6.0 mm coaxial system mounting rods. The snap-in mount CMS-12 includes two flexible clamping sections that enable quick and secure attachment of 60 mm coaxial system components, along with two M3 set screws for component fixation. Both CMS-11 and CMS-12 mounts position the 60 mm coaxial system at a consistent center height of 50 mm.
Key Features
- The 60 mm coaxial system mounted on the dovetail rail
- Utilize dovetail clamping for ease of positioning and locking along the rail
- Coaxial center height: 50 mm above the rail surface
Application
Mount the 60 mm coaxial system components onto the dovetail rail using CMS-12
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Dovetail 60mm coaxial system mounting base (2 variants)
