800nm Transmission Grating
O-TG-25.0-28.0-3.0-BL286Contact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
800.0nm
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Grating Angle Calculator
Compute diffraction angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Overview

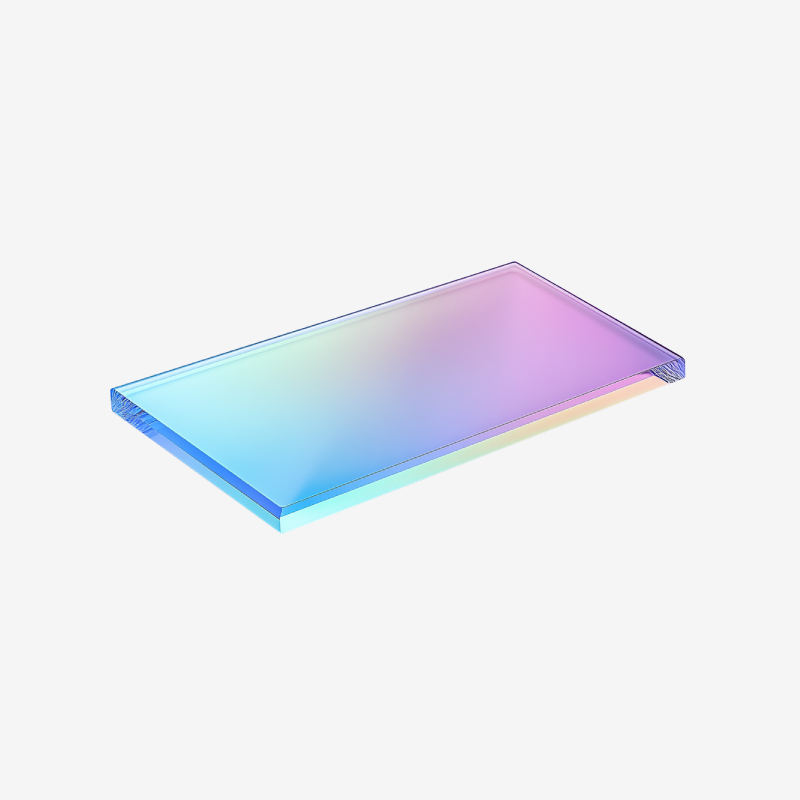

The 800nm Transmission Grating is a precision transmission grating from Gitterwerk, featuring a line density of 1841.60 l/mm.
It operates at 800 nm in transmission.
It is designed for pulse compression, chirped pulse amplification (CPA), and spectral beam combining in high-power ultrafast laser systems.
Applications
- Pulse compression and stretching
- Chirped pulse amplification (CPA)
- Spectral beam combining
- Ultrafast and high-power laser systems
Construction & Performance
- Dimensions: 25.0 x 28.0 x 3.0 mm
- Length: 25.0 mm
- Width: 28.0 mm
- Height: 3.0 mm
- Wavelength: 800 nm
- Line density: 1841.60 l/mm
- Clear aperture: 23.0 x 26.0mm
Storage & Handling
Handle the grating by its edges using powder-free gloves; never touch the grating surface. Store in a dry, dust-free environment away from direct sunlight. The grating surface is delicate — avoid contact and clean only per manufacturer guidance.
SKU: O-TG-25.0-28.0-3.0-BL286
| Dimensions | 25.0 x 28.0 x 3.0mm |
| Length | 25.0 mm |
| Width | 28.0 mm |
| Height | 3.0 mm |
| Wavelength | 800 nm |
| Line Density | 1841.60 l/mm |
| Clear Aperture | 23.0 x 26.0mm |
