90° Flip Mounts — Model TMF-90
✔ In Stock — Ships Today
The 90° Flip Mount provided by LBTEK is suitable for mounting optical components with diameters of Ø12.7 mm, Ø25.4 mm, or Ø50.8 mm, secured by the included retaining rings. The maximum thickness for Ø12.7 mm and Ø25.4 mm optical components should not exceed 10 mm, while for Ø50.8 mm optical components, it should not exceed 12 mm. The 90° flip mount features a stackable mounting design with flexure locking. Multiple flip mounts can be connected in series using MOP series posts with an outer diameter of Ø6 mm. A 1.3 mm hex wrench can be used to tighten the M3 screws on the side for fixing at any angle. The bottom M4 threaded hole also allows direct mounting onto posts. Additionally, please note that the flat-head spring detent screw is factory set and not user adjustable..
Key Features
- For optical components with Ø12.7 mm, Ø25.4 mm, or Ø50.8 mm diameters
- Stackable mounting, Flexure Tightening for easy installation and removal
- Compatible with optical posts
- Including one retaining ring
Application
90° Rotation Mount for Filter Applications
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø25.4 mm |
| Maximum applicable thickness of optical components | 10 mm |
| Tilting angle | 0°~90° |
| Tube Dimensions | Ø6 mm (for series connection) Ø12.7 mm (bottom mounting) |
| Hex Key Wrenches Included | SM1R Retaining Ring / 1 pc |
| Bottom threaded hole specifications | M4 |
Click and drag to rotate. Scroll to zoom.

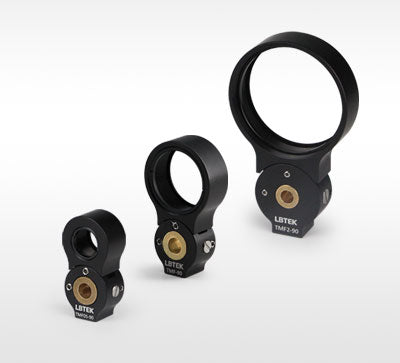

Product Family: 90° Flip Mounts (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 90° Flip Mounts TMF2-90 |
TMF2-90
| — | — | — | View |
| 90° Flip Mounts TMF-90 Current |
TMF-90
| — | — | — | |
| 90° Flip Mounts TMF05-90 |
TMF05-90
| — | — | — | View |
