What wavelength range does 975nm Transmission Grating ≥98.5% support?

975nm Transmission Grating ≥98.5% operates at a center wavelength of 975.0 nm.

What are the physical dimensions of 975nm Transmission Grating ≥98.5%?

975nm Transmission Grating ≥98.5% dimensions: Length: 42.0 mm. Width: 17.0 mm. Height: 6.35 mm.

Is 975nm Transmission Grating ≥98.5% available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

Gitterwerk

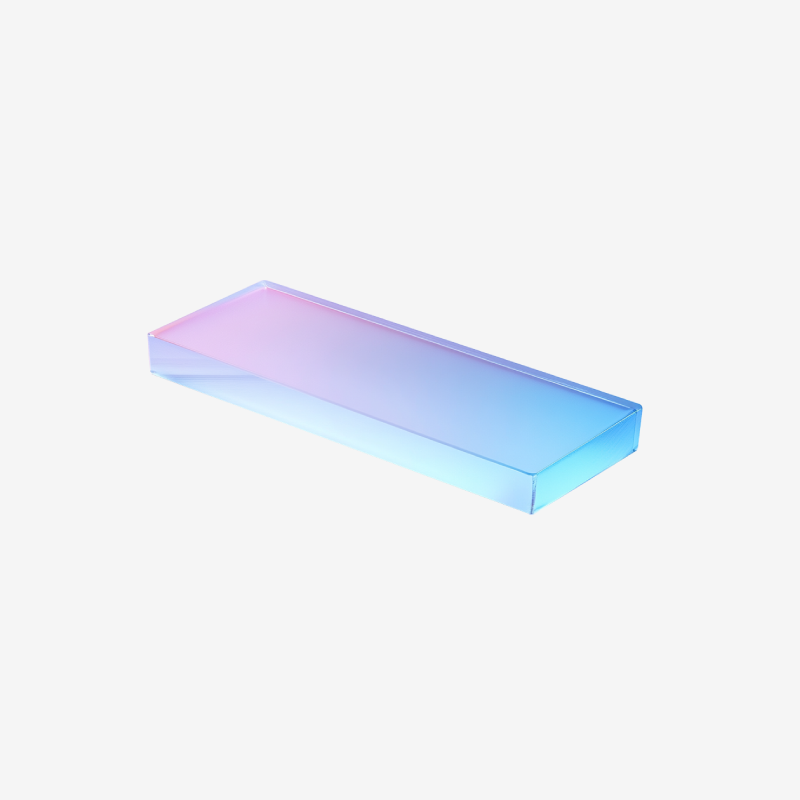

975nm Transmission Grating ≥98.5%

Name: 975nm Transmission Grating ≥98.5%
Brand: Gitterwerk
SKU: 1362_40x15_6.35_H
Price: 1473.07 SGD
Availability: InStock

1362_40x15_6.35_H

$1,473.07

In Stock

Key Specifications

Wavelength 975.0nm

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Grating Angle Calculator Compute diffraction angles and efficiency Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

The 975nm Transmission Grating ≥98.5% is a precision transmission grating from Gitterwerk, featuring a line density of 1567.40 l/mm.

It delivers ≥98.5 diffraction efficiency at 975 nm for TM(p-pol) polarization.

It is designed for pulse compression, chirped pulse amplification (CPA), and spectral beam combining in high-power ultrafast laser systems.

Applications

Pulse compression and stretching
Chirped pulse amplification (CPA)
Spectral beam combining
Ultrafast and high-power laser systems

Construction & Performance

Dimensions: 42.0 x 17.0 x 6.35 mm
Length: 42.0 mm
Width: 17.0 mm
Height: 6.35 mm
Wavelength: 975 nm
Grating period: 638nm
Line density: 1567.40 l/mm
Diffraction efficiency: ≥98.5
Clear aperture: 40.0 x 15.0mm
Polarization: TM(p-pol)

Storage & Handling

Handle the grating by its edges using powder-free gloves; never touch the grating surface. Store in a dry, dust-free environment away from direct sunlight. The grating surface is delicate — avoid contact and clean only per manufacturer guidance.

SKU: 1362_40x15_6.35_H

Dimensions	42.0 x 17.0 x 6.35mm
Length	42.0 mm
Width	17.0 mm
Height	6.35 mm
Wavelength	975 nm
Grating Period	638nm
Line Density	1567.40 l/mm
Diffraction Efficiency	≥98.5%
Clear Aperture	40.0 x 15.0mm
Polarization	TM(p-pol)

No documents available for this product.

No CAD drawings available for this product.

Product Family: 450-980nm Gratings (30 variants)

Product ▴▾	SKU	Dimensions ▴▾	Wavelength ▴▾	Line Density ▴▾
975nm Transmission Grating ≥98.5% Current	`1362_40x15_6.35_H`	42.0 x 17.0 x 6.35mm	975 nm	1567.40 l/mm
975nm Transmission Grating ≥97.5%	`1362_40x15_6.35_N`	42.0 x 17.0 x 6.35mm	975 nm	1567.40 l/mm	View
980nm Transmission Grating ≥98.5%	`1090_15x9.9_3_H`	17.0 x 11.9 x 3.0mm	980 nm	1841.60 l/mm	View
980nm Transmission Grating ≥97.5%	`1090_15x9.9_3_N`	17.0 x 11.9 x 3.0mm	980 nm	1841.60 l/mm	View
975nm Transmission Grating ≥98.5%	`1027_40x15_6.35_H`	42.0 x 17.0 x 6.35mm	975 nm	1567.40 l/mm	View
780nm Transmission Grating ≥97.5%	`2256_30x30_6.35_N`	32.0 x 32.0 x 6.35mm	780 nm	1739.10 l/mm	View
895nm Transmission Grating ≥98.5%	`1463_27x10_6.35_H`	29.0 x 12.0 x 6.35mm	895 nm	1841.60 l/mm	View
895nm Transmission Grating ≥97.5%	`1463_27x10_6.35_N`	29.0 x 12.0 x 6.35mm	895 nm	1841.60 l/mm	View
920nm Transmission Grating ≥97.5%	`1420_10x8_6.35_N`	12.0 x 10.0 x 6.35mm	920 nm	1379.30 l/mm	View
975nm Transmission Grating ≥99.0%	`1358_74x10_6.35_X`	76.0 x 12.0 x 6.35mm	975 nm	1600.00 l/mm	View
975nm Transmission Grating ≥97.5%	`1358_27x10_6.35_N`	29.0 x 12.0 x 6.35mm	975 nm	1600.00 l/mm	View
975nm Transmission Grating ≥98.5%	`1392_55x28_3_H`	57.0 x 30.0 x 3.0mm	975 nm	1841.60 l/mm	View
975nm Transmission Grating ≥99.0%	`1392_28.8x12_3_X`	30.8 x 14.0 x 3.0mm	975 nm	1841.60 l/mm	View
975nm Transmission Grating ≥98.5%	`1392_28.8x12_3_H`	30.8 x 14.0 x 3.0mm	975 nm	1841.60 l/mm	View
920nm Transmission Grating ≥97.5%	`1420_18x12_3_N`	20.0 x 14.0 x 3.0mm	920 nm	1379.30 l/mm	View
920nm Transmission Grating ≥98.5%	`2079_38x14_6.35_H`	40.0 x 16.0 x 6.35mm	920 nm	1600.00 l/mm	View
920nm Transmission Grating ≥93%	`1425_53x14_6.35_L`	55.0 x 16.0 x 6.35mm	920 nm	1739.10 l/mm	View
920nm Transmission Grating ≥97.5%	`1872_12x8_6.35_N`	14.0 x 10.0 x 6.35mm	920 nm	1841.60 l/mm	View
920nm Transmission Grating ≥97.5%	`1872_10x8_6.35_N`	12.0 x 10.0 x 6.35mm	920 nm	1841.60 l/mm	View
895nm Transmission Grating ≥97.5%	`1463_28x23_6.35_N`	30.0 x 25.0 x 6.35mm	895 nm	1841.60 l/mm	View
780nm Transmission Grating ≥98.5%	`2256_12x8_6.35_H`	14.0 x 10.0 x 6.35mm	780 nm	1739.10 l/mm	View
780nm Transmission Grating ≥97.5%	`2256_12x8_6.35_N`	14.0 x 10.0 x 6.35mm	780 nm	1739.10 l/mm	View
671nm Transmission Grating ≥90%	`1868_30x13_3_L`	32.0 x 15.0 x 3.0mm	671 nm	2500.00 l/mm	View
600nm Transmission Grating ≥75%	`1627_28x18_3_L`	30.0 x 20.0 x 3.0mm	600 nm	1000.00 l/mm	View
600nm Transmission Grating ≥95%	`1807_28x18_3_L`	30.0 x 20.0 x 3.0mm	600 nm	1739.10 l/mm	View
532nm Transmission Grating ≥96.5%	`1666_108x22_6.35_L`	110.0 x 24.0 x 6.35mm	532 nm	2500.00 l/mm	View
520nm Transmission Grating ≥96.5%	`1730_28x18_3_L`	30.0 x 20.0 x 3.0mm	520 nm	2500.00 l/mm	View
520nm Transmission Grating ≥96.5%	`1730_15x13_3_L`	17.0 x 15.0 x 3.0mm	520 nm	2500.00 l/mm	View
450nm Transmission Grating ≥97.5%	`1748_38x38_6.35_N`	40.0 x 40.0 x 6.35mm	450 nm	2500.00 l/mm	View
450nm Transmission Grating ≥97%	`1489_15x13_3_L`	17.0 x 15.0 x 3.0mm	450 nm	2500.00 l/mm	View
