Accessories and extensions for the main bracket MFR-B

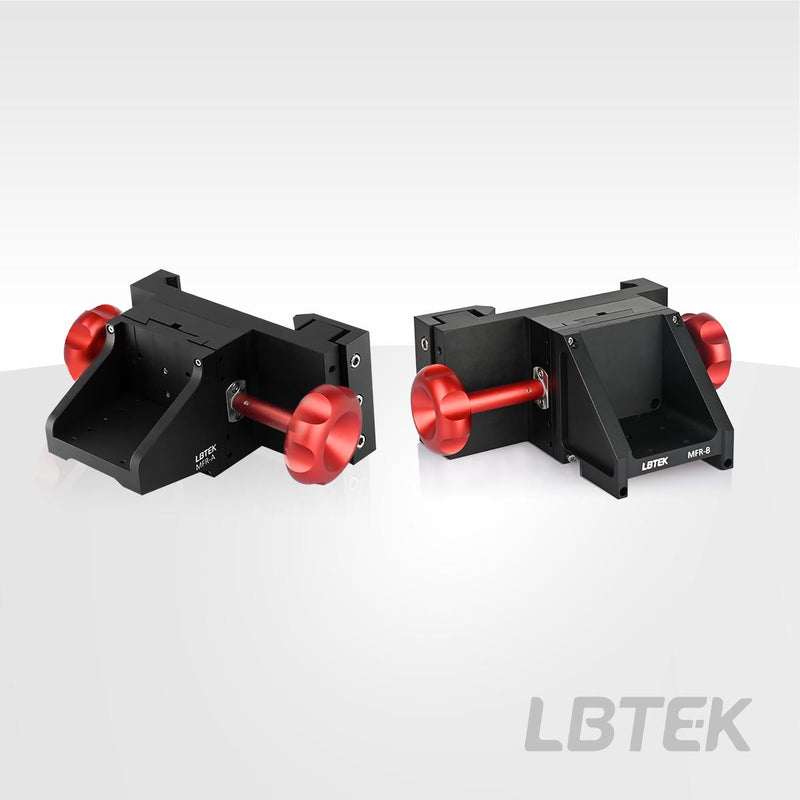

The LBTEK Manual Focusing Mount provides a 25.4 mm manual travel range for installed condensers and their mounting brackets. The focusing mount includes a 95 mm dovetail clamp that can attach to the microscope body stand, a manual translation stage, and a mounting bracket with six M3 threaded holes. These six M3 threaded holes are compatible with the M3 countersunk holes on the DMA. When installing the DMA on the manual focusing mount, the optical port aligns with the optical path at a distance of 196.5 mm from the edge of the microscope imaging system rail. The translation stage can be adjusted using the knob. Compared to translation stages with rollers, the manual focusing mount utilizes a dovetail movement mechanism to minimize long-term drift.
