Accessories and extensions for the main bracket — Model MRF1-MF2
✔ In Stock — Ships Today

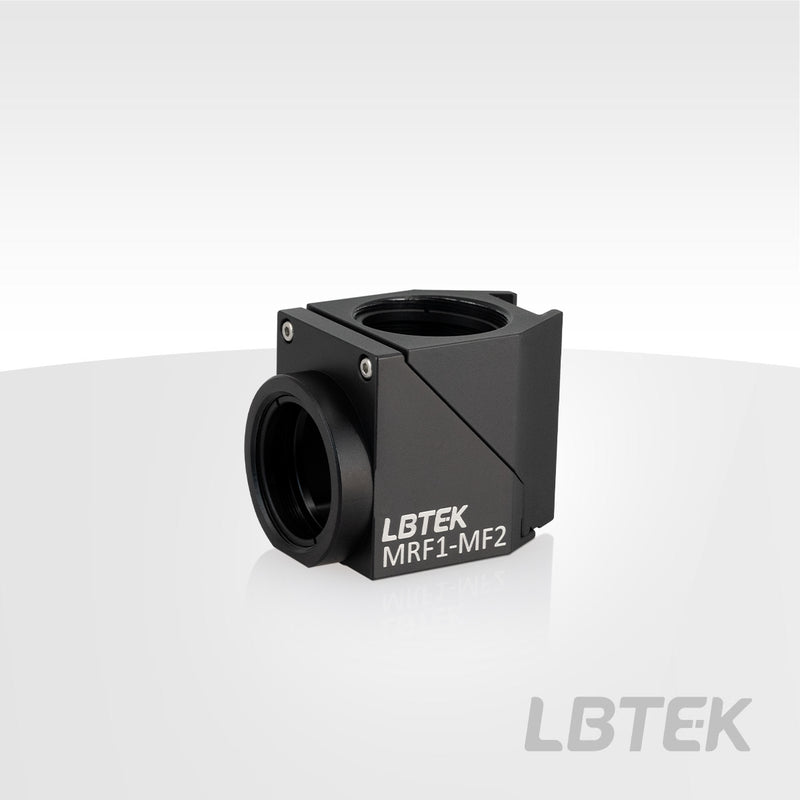

The LBTEK filter cube comes with a dovetail mounting slot, which can be installed on the dovetail block of the front door cover of a single-port epi-illumination box. The filter cube can accommodate one 36.0 mm × 25.0 mm × 1.0 mm dichroic mirror (maximum compatible size is 36.0 mm × 25.2 mm × 1.0 mm). Two SM1 threaded holes can secure one excitation filter (Ø25 mm, maximum thickness 5 mm) and one emission filter (Ø25 mm, maximum thickness 3.5 mm) using retaining rings, allowing it to form a complete fluorescence filter cube set.
Key Features
- The filter cube comes with a dovetail slot for installation in a single-port epi-illumination module
- It can accommodate one rectangular dichroic mirror (36.0 mm × 25.0 mm × 1.0 mm) + one circular excitation filter (Ø25 mm, maximum thickness 5 mm) + one circular emission filter (Ø25 mm, maximum thickness 3.5 mm), forming a complete fluorescence filter cube set.
Application
Application Example
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Weight | 0.06 Kg |
| Mounting Hole Pattern | SM1/2 |
| Number of Filters Mounted | Rectangle 1 piece / Circle 2 pieces |
| Installation Method | Mother swallowtail groove |
| Compatible Optics Specifications | 1 piece 36mm×25mm×1mm / 2 pieces Ø25mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
