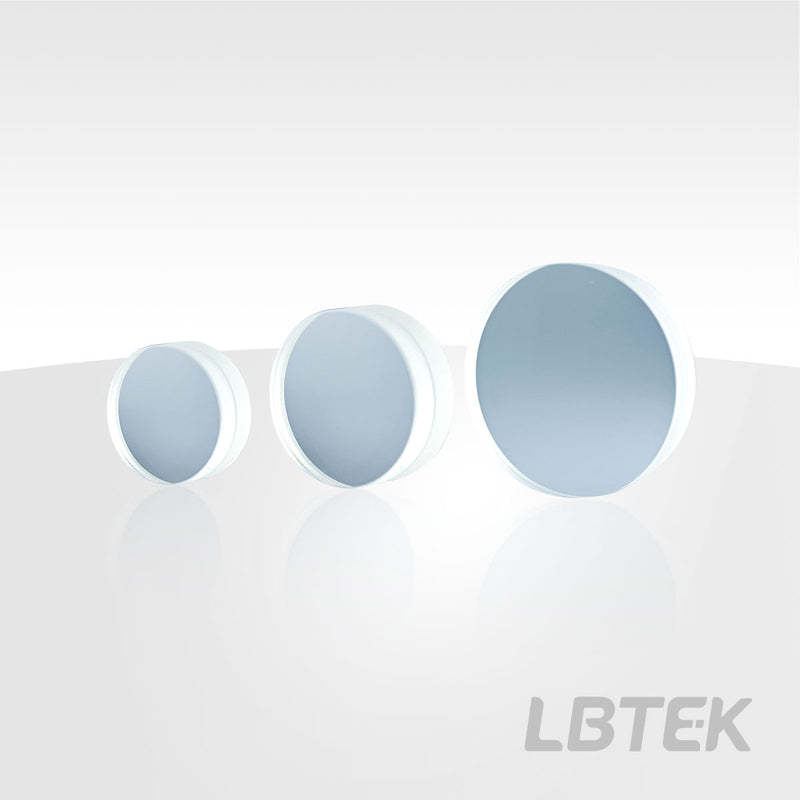

Achromatic Doublet Positive Lenses, AR Coating: 400 nm-1100 nm, Unmounted AD418-AB

Achromatic Doublet Positive Lenses, AR Coating: 400 nm-1100 nm, Unmounted — Model AD418-AB

Operating wavelength 400 nm-1100 nm, focal length 200.0 mm, Ø25.4 mm, substrate N-LAK22/N-SF10.

Product Description

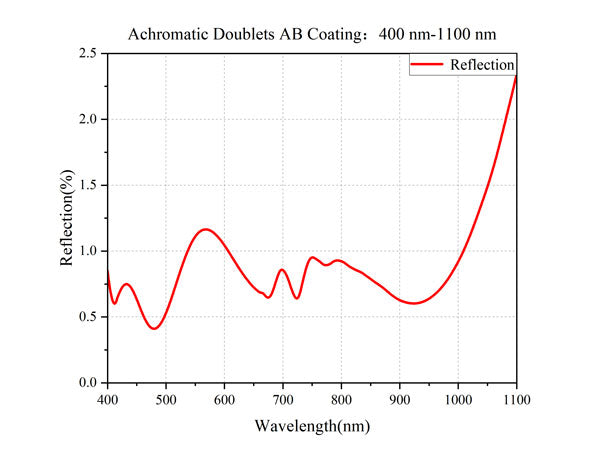

• Operating wavelength: 400 nm-1100 nm (anti-reflection coating)
• Small focal length shift across different wavelengths
• High-precision design and manufacturing to meet diverse needs

The achromatic doublet lens significantly optimizes chromatic aberration and spherical aberration through composite optical materials, with optical performance far surpassing that of single lenses, meeting the demands of high-precision imaging and complex beam control. The LBTEK Achromatic Doublet Lenses employ a multi-wavelength optimized design, precisely matching three sets of core wavelengths for different anti-reflection coating systems: the wavelengths of 486.1 nm (F-line), 587.6 nm (d-line), and 656.3 nm (C-line) are selected for the 400-700 nm coating system; the wavelengths of 706.5 nm, 855 nm, and 1015 nm are selected for the 700-1100 nm coating system; the wavelengths of 1016 nm, 1330 nm, and 1550 nm are selected for the 1100-1650 nm coating system; the wavelengths of 488 nm, 707 nm, and 1064 nm are selected for the 400-1100 nm coating system. Multi-wavelength collaborative computation ensures that the lens's focal length shift within the design bandwidth is less than 0.5 mm, with stable performance across the entire spectrum. The LBTEK Achromatic Doublet Lenses are precisely manufactured and rigorously quality-controlled to guarantee the high-quality performance at a cost-effective price.

Achromatic Doublet Positive Lenses, AR Coating: 400 nm-1100 nm, Unmounted

• Operating wavelength: 400 nm-1100 nm (anti-reflection coating)
• Small focal length shift across different wavelengths
• High-precision design and manufacturing to meet diverse needs

The optical performance of achromatic doublet lenses far superior to that of singlet lenses, making them suitable for demanding imaging and beam control requirements. All LBTEK Unmounted Circular Lenses can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting solution for different application scenarios.
