Achromatic Doublet Lenses, AR Coating: 700 nm-1100 nm AD409-B

AD409-B
$122.36
In Stock
Key Specifications
Wavelength 700.0nm
Transmittance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Achromatic Doublet Lenses, AR Coating: 700 nm-1100 nm — Model AD409-B

✔ In Stock — Ships Today

Specifications

Parameter Value
Clear Aperture 90% CA
Surface Quality 40/20
Design Wavelength 700 nm-1100 nm
Transmittance Ravg<0.5%a@工作波长（6°入射角，单面）
Optical Parameters
Center Wavelength700.0 nm
Performance
Transmittance0.5%
Physical Dimensions
Clear Aperture90.0 mm
Specification Sheet PDF — Download
3D Model (STL) STL — Download

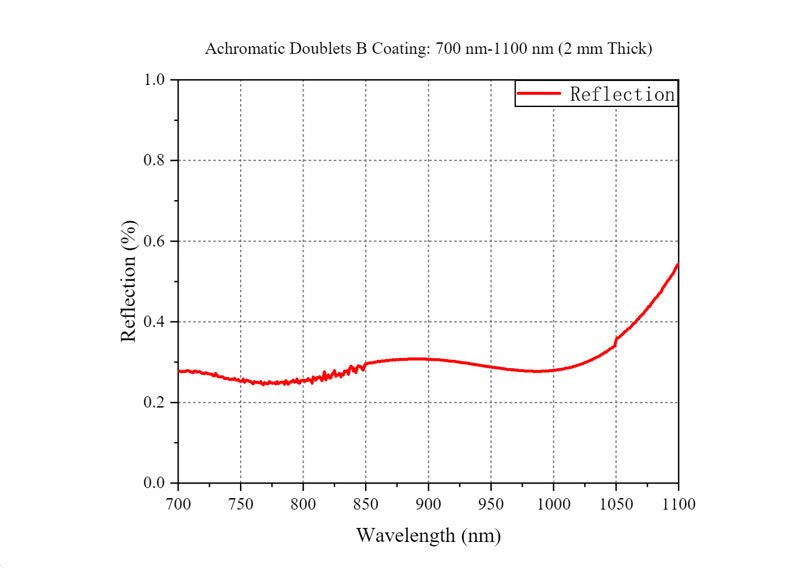

Curve - Cemented Lens B
Curve - Cemented Lens B
