Acousto-optic Modulator (AOM) RFD-080-SMAF
RFD-080-SMAF$1,201.93
In Stock· Ships in 4.0 weeks
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

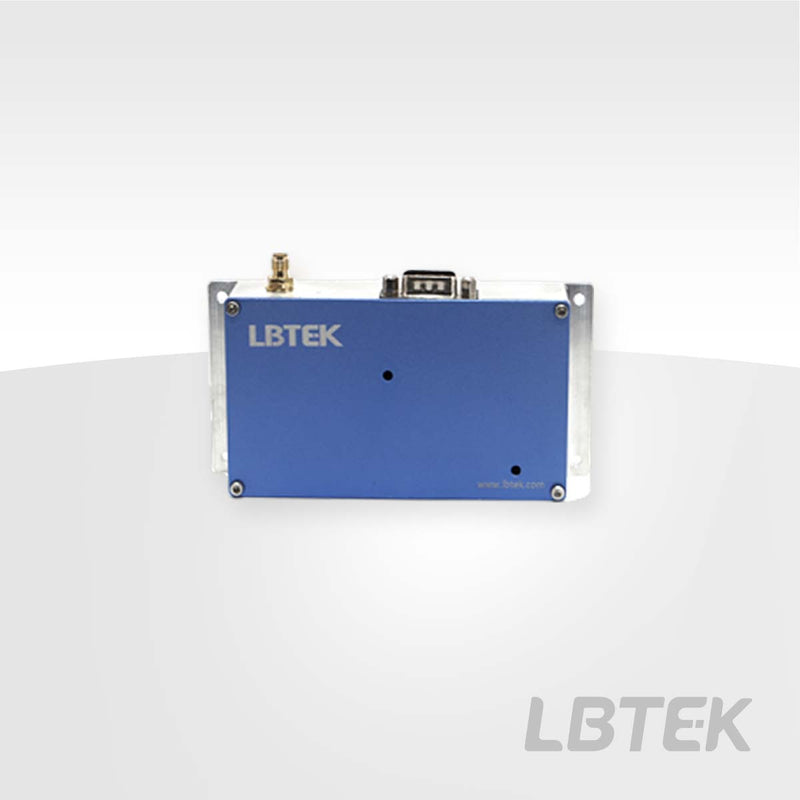

RF Driver for Free-Space AOM
Standard RF driver for free-space acousto-optic modulators. SMA connectors with digital modulation input.
Key Features
- Based on Bragg diffraction with first-order diffracted light separation
- High diffraction efficiency (typically >80% at center frequency)
- Configurable for use as optical switch or variable attenuator
- Matched RF driver and power supply available separately
- Custom configurations available — contact our engineering team
Typical Applications
- Laser marking and engraving
- Material processing and microfabrication
- Medical and surgical laser systems
- Ultrafast fiber laser pulse picking
- Q-switching and seed-source modulation
- Laser cooling and atomic physics experiments
- Frequency stabilization
Product Family
LBTEK's acousto-optic modulator (AOM) series products are based on the principle of acousto-optic interaction, enabling frequency shifting and amplitude modulation of laser light. They can be used as optical switches (cyclically switching light on and off at a set frequency) or as variable attenuators (dynamically controlling the intensity of transmitted light).
SKU: RFD-080-SMAF · Sourced from LBTEK · Distributed by WaveQuanta
| Frequency | 80 MHz |
| Frequency Stability | ±1 ppm/°C |
| Maximum Output Power | 20 W |
| Digital Control | 0-5 V TTL |
| Analog Control | 0-5 V |
| Rise/Fall Time (10%–90%) | <35 ns |
| Trigger Frequency | DC-1MHz |
| Input/Output Impedance | 50 Ω |
| Power Supply | DC 24 V,<3A |
| VSWR | ≤1.2:1 |
| Interface Type | DB9 ; SMA-F |
| Cooling Method | Conduction-Cooled |
| Operating Temperature | 10 ℃~50 ℃ |
| Dimensions | 129.0 mm×61.0 mm×28.5 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
