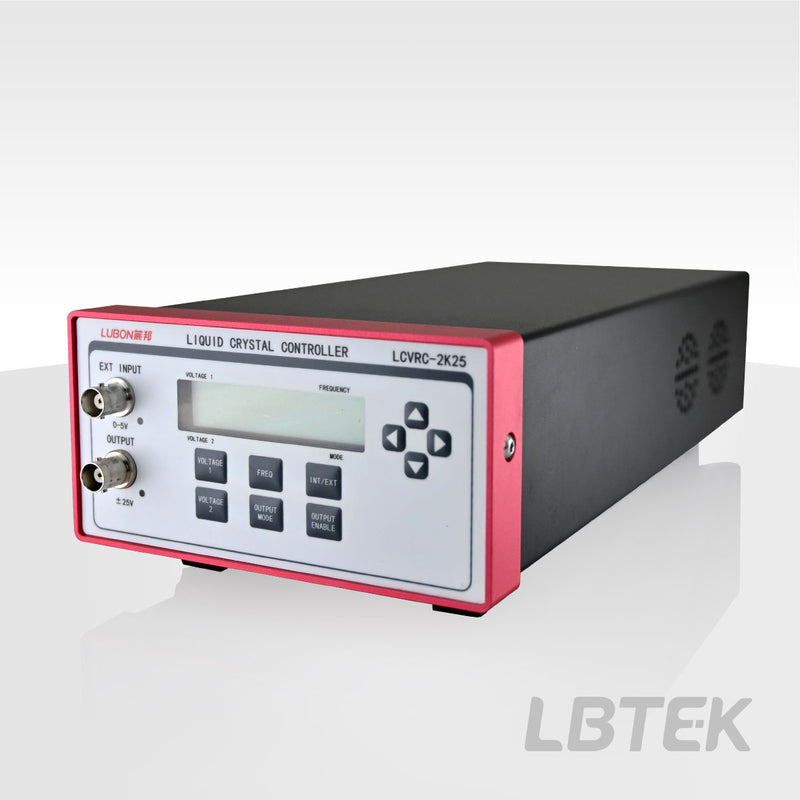

Active Liquid Crystal Device Voltage Controllers — Model LCVRC-2K25

Dual-mode voltage controller for LBTek liquid crystal variable retarders: 2000 Hz AC square wave with ±25 V adjustable amplitude and 0.5-150 Hz modulation frequency.

Overview

The LBTEK Active Liquid Crystal Device Voltage Controller conveniently generates AC square waves with a fixed frequency of 2000 Hz and an adjustable voltage amplitude range of 0-25 V. It also supports dual-voltage output mode, with an adjustable switching frequency between 0.5-150 Hz.

Key Features

  • AC square wave with frequency up to 2000 Hz available
  • Adjustable voltage amplitude range of 0-25 V
  • Dual voltage output mode available with modulation frequency selectable from 0.5 to 150 Hz
  • Panel control, external input control or command-line interface control available
  • Features real-time DC offset monitoring and correction function

Applications

  • Drives LBTek liquid crystal variable retarders (QLCVR / LCVR series) for polarization modulation and adjustable retardance control.
  • Laboratory AC square-wave signal source for liquid crystal device testing.
Maximum Output Current15 mA
Maximum input voltage5 VDC
Maximum Relative Humidity85%
Fuse Rating (Alternative Specification)2 A (5×20 mm slow-blow fuse)
Operating Temperature10-40 ℃
External input voltage0-5 VDC square save
Adjustable output voltage±25 V
Voltage Resolution1.0 mV
Adjustable internal modulation frequency0.5-150 Hz, 50% duty cycle
Switching frequency2000±5 Hz, 50% duty cycle
Conversion Rate10 V/μs
DC bias voltage±10 mV
AC Power100-240 VAC, 50-60 Hz, 50 VA
Preheating time30 min
Specification Sheet PDF — Download
No CAD drawings available for this product.

Product Family: Active Liquid Crystal Device Voltage Controllers (1 variants)

Product ▴▾ SKU Switching frequency ▴▾ Adjustable output voltage ▴▾
Active Liquid Crystal Device Voltage Controllers LCVRC-2K25 Current LCVRC-2K25 2000±5 Hz, 50% duty cycle ±25 V
