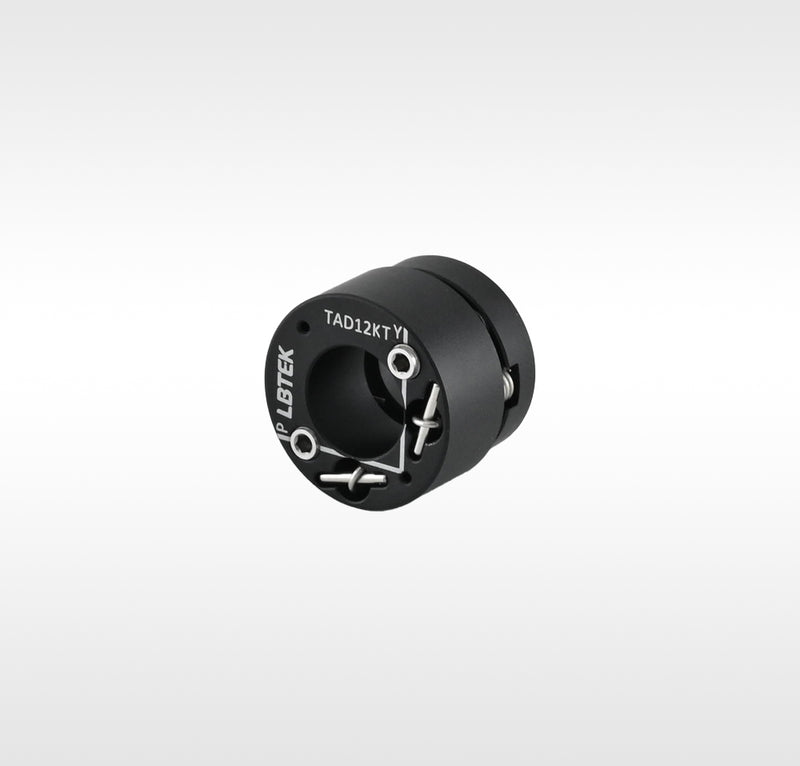

Adjustable Adapter TAD12KT

The adjustable adapter TAD12KT from LBTEK mounts and fixes Ø12 mm cylindrical components, commonly used for securing fiber collimators. It provides ±5° adjustment in pitch and yaw. The Ø25.4 mm smooth-bore of the adapter is compatible with mounting components featuring the Ø25.4 mm inner diameter, such as when paired with COPM1B for applications in 30 mm coaxial systems. Two M4×0.25 fine adjustment screws on the front panel of the adapter control pitch and yaw, adjustable using the 2.0 mm hex key. The front panel is marked with pitch and yaw axis indicators and features two holes for the OWR-U adjustable key. Note: When adjusting the M4 fine adjustment screws, remain within the adjustable range of ±5°. To prevent product failure caused by over-insertion of fine adjustment screws leading to disengagement from the outer mounting ring, ensure that the depth between the mounting surface of the outside ring and the screw surface does not exceed 2 mm during adjustment.
