Adjustable Clamps — Model HM-C25-70
✔ In Stock — Ships Today

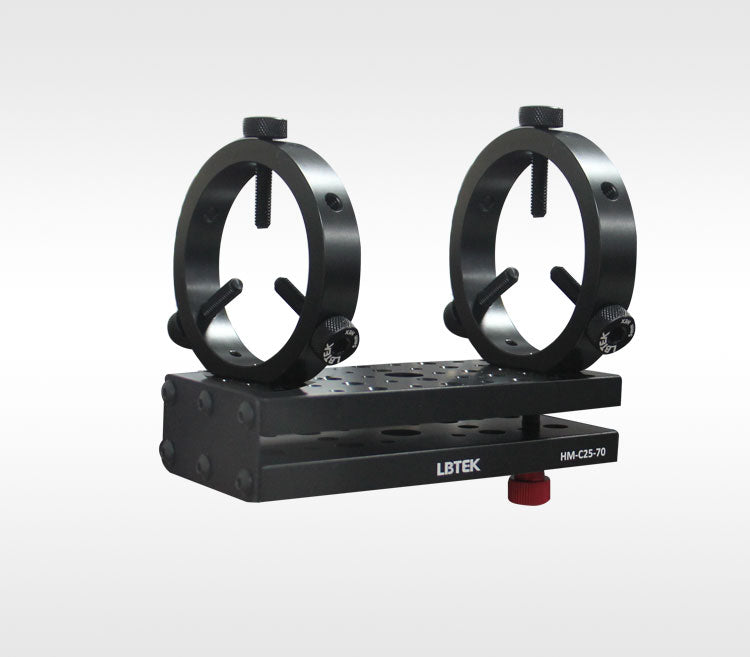

The LBTEK Adjustable Tube Clamps can accommodate lasers with diameters ranging from 25 mm to 65 mm. The base allows for one-dimensional pitch adjustment with a range of ±3°. The tube clamp features three M4 mounting holes and five M6 thumb screw holes, enabling angular installation. The position between two tube clamps can be adjusted on the base panel, or it can be used individually as a fixture. The base panel includes several M4 and M6 threaded holes, with a central M6 countersunk hole, allowing for standalone use or installation on standard optomechanical components such as breadboards or bases.
Key Features
- The thumb screws allow clamping of lasers with diameters ranging from 25 mm to 65 mm
- The base provides one-dimensional pitch adjustment with a range of ±3°
- The base features several M4 and M6 threaded holes
- Adjustable tube clamp spacing: 25 mm to 100 mm
Application
The adjustable tube clamp is often installed on Ø25 mm optical posts with base.
No specifications available for this product.
Product Family: Adjustable Clamps (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Adjustable Clamps HM-C25-70 Current |
