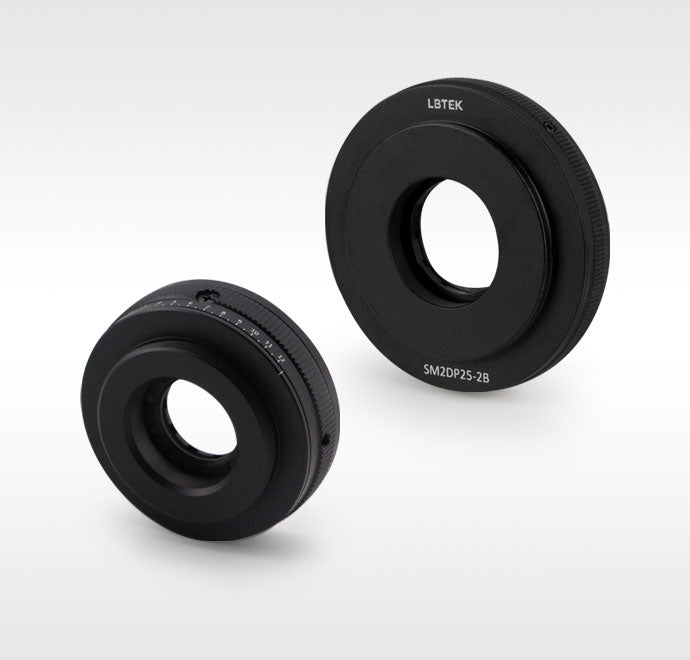

Adjustable diaphragm SM2DP25-2B
SM2DP25-2B$170.33
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Adjustable diaphragm SM2DP25-2B from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today
LBTEK offers iris diaphragms with adjustable ranges of Ø1 mm~Ø12 mm and Ø1 mm~Ø25 mm, featuring SM1 internal/external threads and SM2 internal/external threads respectively, facilitating integration into lens tubes or coaxial systems.
Key Features
- Iris continuous adjustment range: Ø1 mm~Ø25 mm
- Thread specification: SM1 internal/external threads and SM2 internal/external threads
- Can be integrated into lens sleeves or coaxial systems
Application
SM2DP25-2B Adjustable Iris Mounted on TXY2
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Compatibility | SM2 internal thread and SM2 external thread |
| Attribute 534 | Ø68 mm |
| Continuous adjustment range | Ø1 mm~ Ø25 mm |
| Attribute 536 | No |
No CAD drawings available for this product.
Product Family: Adjustable diaphragm (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Adjustable diaphragm SM1DP12-1B |
SM1DP12-1B
| — | — | — | View |
| Adjustable diaphragm SM2DP25-2B Current |
SM2DP25-2B
| — | — | — | |
| Adjustable diaphragm SM1DP12-1A |
SM1DP12-1A
| — | — | — | View |
