WaveQuanta

Air-Spaced Achromatic Doublet, AR Coating: 650-1050 nm ADA418-B

ADA418-B
$753.25
In Stock
Key Specifications
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →
RoHS REACH

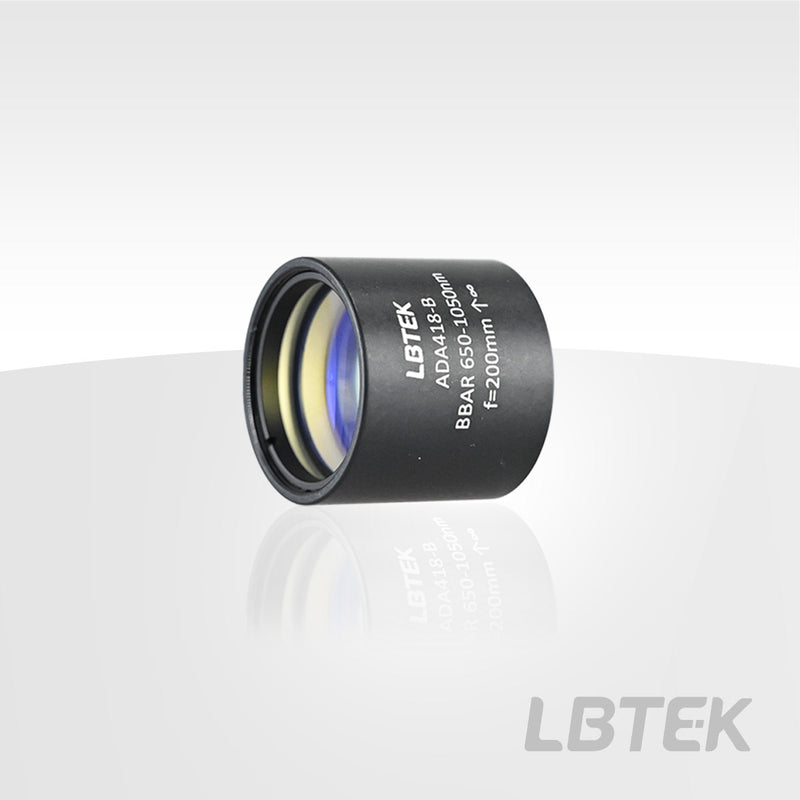

Air-Spaced Achromatic Doublet, AR Coating: 650-1050 nm — Model ADA418-B

Focal length 200 mm.

Product Description

  • AR Coating: 350-700 nm or 650-1050 nm
  • Superior Image Quality Compared to Singlets
  • Clear Aperture: Ø20 mm
  • 1" Outer Diameter, Compatible with Ø1" Lens Tubes

LBTEK Air-Spaced Achromatic Doublets deliver a spot size close to the diffraction limit, with optical designs that correct for most aberrations. Compared to cemented doublets, they offer a higher damage threshold. These doublets are designed for broad wavelength ranges. For different coating options, LBTEK uses three typical wavelengths in the lens design: For 350–700 nm AR coating: 486.1 nm, 587.6 nm, and 656.3 nm；For 650–1050 nm AR coating: 706.5 nm, 855 nm, and 1015 nm. All LBTEK lenses are precision-manufactured under strict quality control, ensuring high-quality optical products at competitive prices.

Air-Spaced Achromatic Doublet, AR Coating: 650-1050 nm

  • Coating: 650-1050 nm
  • Clear Aperture: Ø20 mm
  • Outer Diameter 1 Inch, Compatible with Ø1 Inch Lens Tubes

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear ApertureØ20 mm
ReflectanceRavg<0.5% @650-1050 nma
Design Wavelength706.5、855、1015 nm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

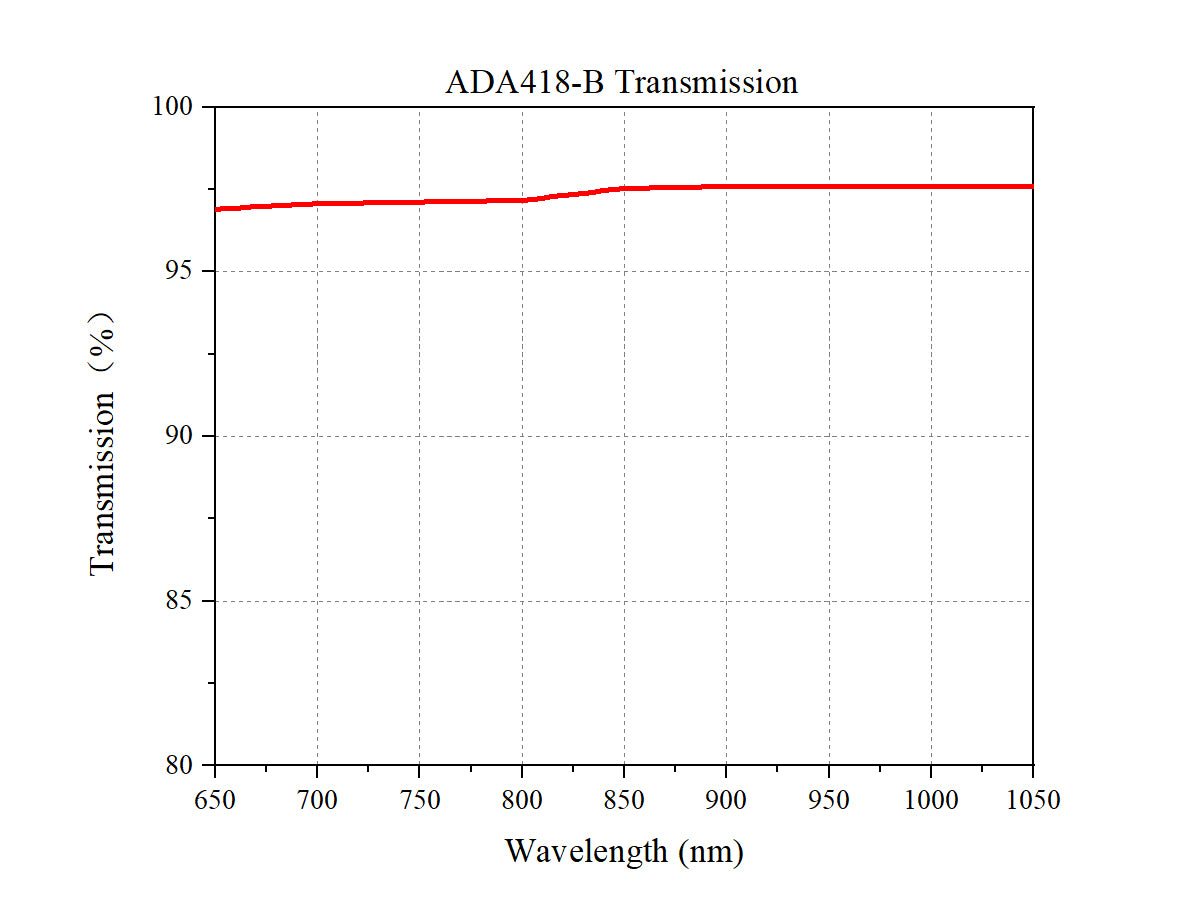

Curve - ADA418-B Theoretical Transmittance
Curve - ADA418-B Theoretical Transmittance

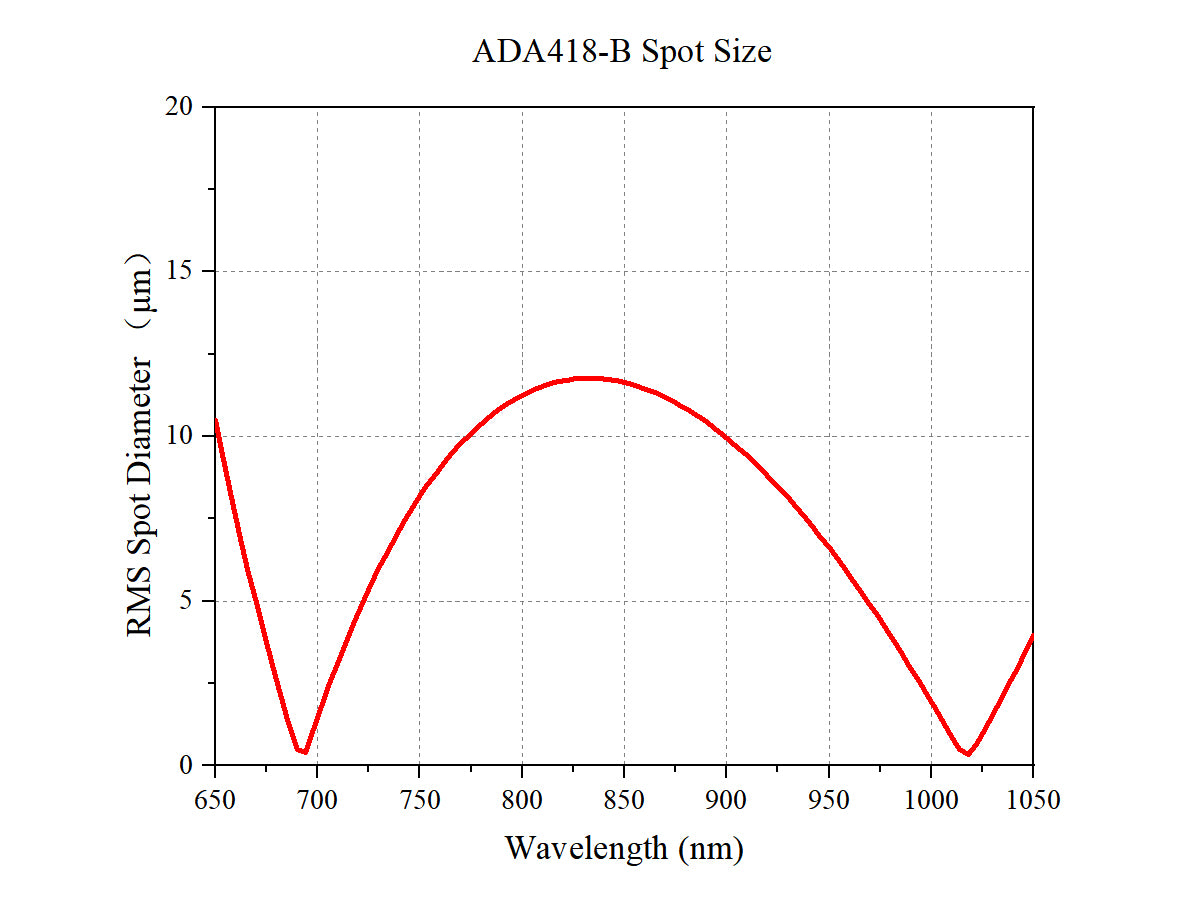

Curve - ADA418-B Theoretical Spot Diagram
Curve - ADA418-B Theoretical Spot Diagram
Curve - ADA418-B Theoretical Wavefront
Curve - ADA418-B Theoretical Wavefront
