All-In-One Cameras AIO-Cam
AIO-Cam$653.71
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

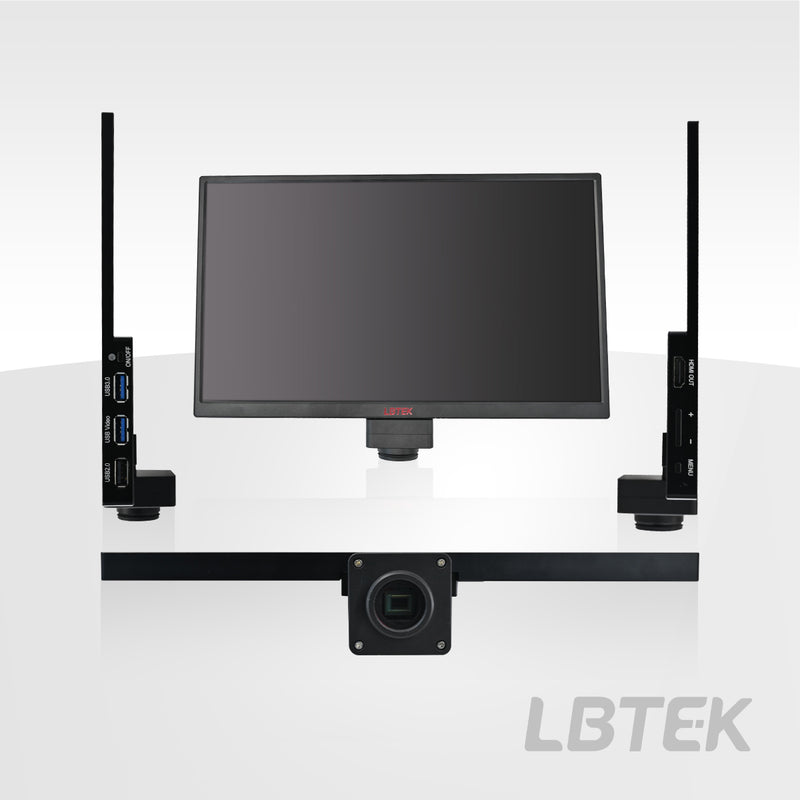

LBTEK's All-In-One Camera integrates the camera with a display screen for easy installation and can be directly used with microscopes. It can also be connected to a computer via a USB3 cable or to an external monitor through an HDMI2.0 interface for synchronous output. The camera features a resolution of up to 8 megapixels, with a C-Mount optical input port and two M4 threaded holes at the bottom.
Key Features
- C-Mount optical connector
- Up to 8 million pixels
Application
Integrated camera connects with microscope
| Spectral range | 380-650 nm |
| Pixel size | 2.0 μm × 2.0 μm |
| Effective pixels | 8 MP |
| Sensor Format | 1/1.8'' |
| Frame Rate & Resolution | 60@3840*2160<sup>a</sup> |
| Shutter Type | Rolling shutter |
| color | Colorful |
| Bit Depth | 12 bit |
| Data Transfer Interface | USB3.0/HDMI |
| Exposure Time | 0.019 ms~1000 ms |
| Optical Interface | C-Mount |
| Sensitivity | 3541 mv with 1/30 s <sup>b</sup> |
| Dark Current | 0.15 mv with 1/30 s |
| Power Method | DC 12V/2A |
| Operating Temperature | -10~50 ℃ |
| Operating Temperature | -20~60 ℃ |
| Operating Humidity | 30%-80%, no condensation |
| Size | 306.7 mm × 213.3 mm × 50 mm (with display screen) |
