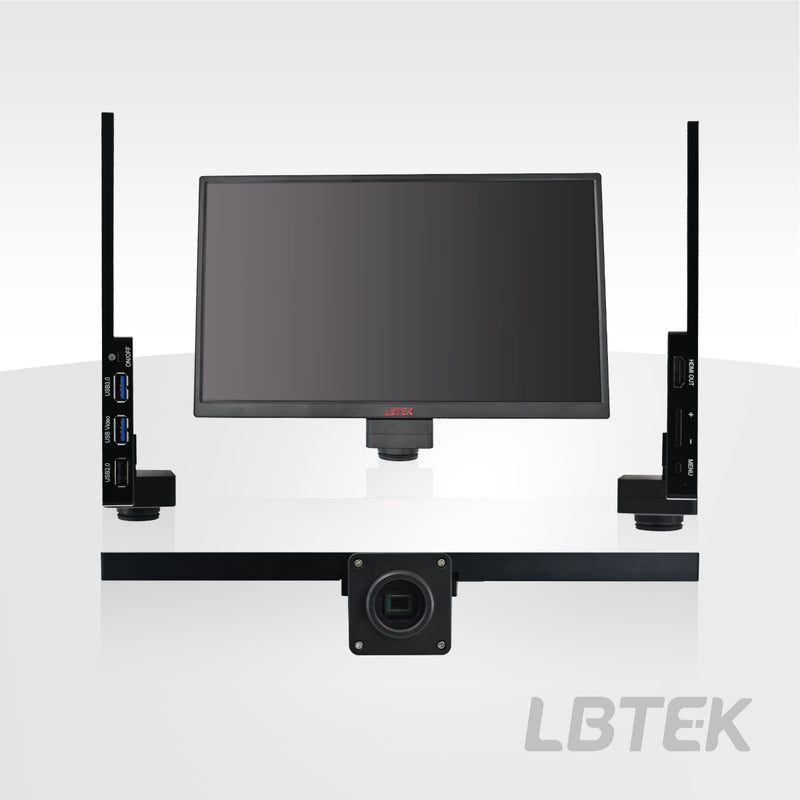

All-In-One Camera — Model AIO-Cam
8 MP All-In-One Camera with USB3.0/HDMI interface; 380-650 nm spectral response, 2.0 μm × 2.0 μm pixel size.
Overview
LBTEK's All-In-One Camera integrates a 13.3-inch display and a 4K image acquisition processing system. It can be directly used for video and image capture with stereoscopic microscopes or biological microscopes without requiring a computer, and can also form a microscopic interactive teaching system using WiFi wireless networks. It supports HDMI 2.0 interface for connecting external displays to achieve synchronous output, with adaptive switching between 4K/1080P HDMI output. It also supports USB 3.0 interface for synchronous real-time video output.
Key Features
- The camera and display are integrated for ease of use
- Powerful ISP capabilities with significant sharpening and 3D noise reduction effects, plus more accurate ROI white balance
| Spectral range | 380-650 nm |
| Pixel size | 2.0 μm × 2.0 μm |
| Effective pixels | 8 MP |
| Sensor size | 1/1.8'' |
| Frame rate | 60@3840*2160 |
| Shutter Type | Rolling shutter |
| color | Colorful |
| Bit Depth | 12 bit |
| Data interface | USB3.0/HDMI |
| Exposure time | 0.019 ms~1000 ms |
| Optical Interface | C-Mount |
| Signal-to-Noise Ratio | 3541 mV @ 1/30 s |
| Dark current | 0.15 mV @ 1/30 s |
| Power Supply | DC 12V/2A |
| Operating temperature | -10~50 °C |
| Storage temperature | -20~60 °C |
| Humidity | 30%-80%, No Condensation |
| Size | 306.7 mm × 213.3 mm × 50 mm (with display screen) |
No CAD drawings available for this product.
Spectral Response 1 — Graph
Spectral Response 2 — Graph
