WaveQuanta

Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4704-A

AC4704-A
$39.60
In Stock
Key Specifications
Wavelength 400.0nm
Diameter 25.4mm
LIDT 0.12J/cm²
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted — Model AC4704-A

Operating wavelength 400 nm-700 nm, focal length 16.0 mm, Ø25.4 mm, substrate B270.

Product Description

  • Substrate Material: B270
  • High Numerical Aperture (NA)
  • Operating Wavelength: 400 nm-700 nm (with AR Coating)
  • Application: Condensing, Projection and Detection

Compared to conventional spherical lenses, aspheric condenser lenses feature a larger numerical aperture (NA) and lower f-number (f/#). These condensers are suitable for collimating broadband light sources, LEDs, or other illumination scenarios requiring high efficiency. To ensure optimal performance, when used for collimating point sources, the beam should be incident on the flatter surface of the lens; when the aspheric condenser lens is used for focusing collimated beams, the beam should be incident on the surface with greater curvature. LBTEK manufactures various aspheric condenser lenses using B270 glass, a high-quality glass developed by Schott with excellent surface flatness and optical performance, offering high transmittance in the visible spectrum. Compared to precision-polished aspheric lenses, molded aspheric condenser lenses provide better production consistency and are suitable for mass production. LBTEK offers uncoated aspheric condenser lenses as well as lenses with two types of anti-reflection coatings: 400 nm-700 nm and 700 nm-1100 nm. All our lenses undergo fine processing and strict quality control, ensuring that LBTEK delivers high-quality optical products at competitive prices.

Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted

  • Substrate Material: B270
  • High Numerical Aperture (NA)
  • Operating Wavelength: 400 nm-700 nm (with AR coating)
  • Application: Condensing, Projection and Detection

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture>22.9 mm
Damage Threshold0.12J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Clear Aperture>22.9 mm
Operating Wavelength400 nm-700 nm
Diameter25.4 mm
Eccentricity≤30 arcmin
Damage Threshold0.12J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Low damage threshold detected (0.12 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
3D Model (STL) STL — Download

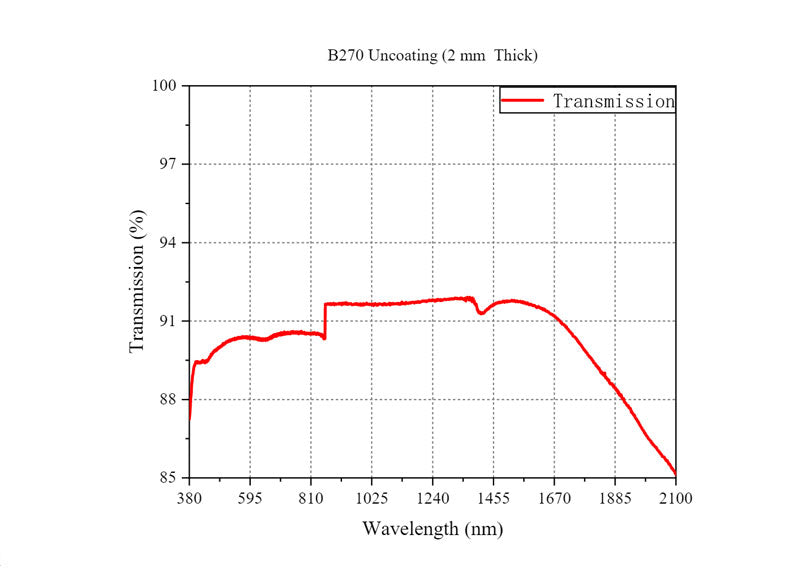

Curve 1
Curve 1

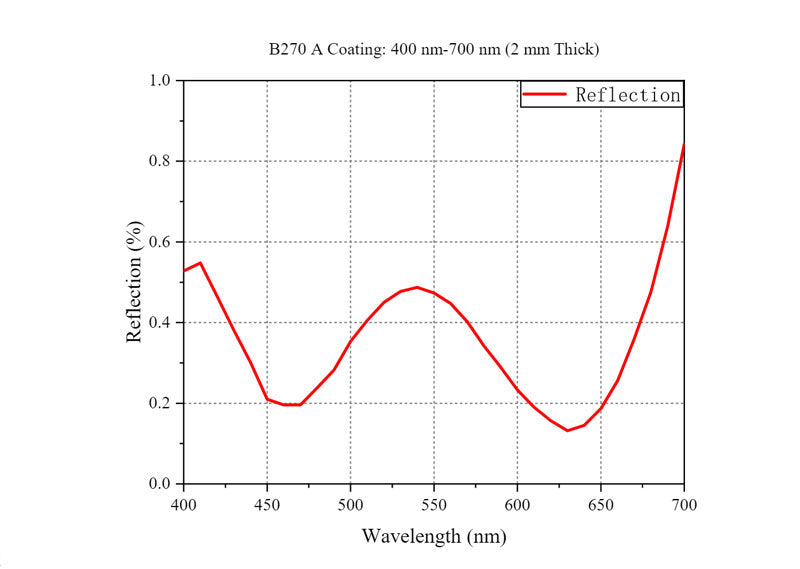

Curve - B270 A
Curve - B270 A

Product Family: Aspheric Condenser Lenses, B270, AR Coating: 400 nm-700 nm (21 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC42032-A-SP AC42032-A-SP 50.8 mm >45.7 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC43026-A-SP AC43026-A-SP 30.0 mm >27.0 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4101-A AC4101-A 10.0 mm >9.0 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4202-A AC4202-A 12.0 mm >10.8 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4301-A AC4301-A 12.7 mm >11.4 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4403-A AC4403-A 15.0 mm >13.5 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4505-A AC4505-A 20.0 mm >18.0 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4606-DG1500-A AC4606-DG1500-A 25.0 mm >22.5 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4704-A Current AC4704-A 25.4 mm >22.9 mm 400 nm-700 nm
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4807-A AC4807-A 50.0 mm >45.0 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4606-A AC4606-A 25.0 mm >22.5 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4606-DG600-A AC4606-DG600-A 25.0 mm >22.5 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4807-DG600-A AC4807-DG600-A 50.0 mm >45.0 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4807-DG1500-A AC4807-DG1500-A 50.0 mm >45.0 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4301-633-SP AC4301-633-SP 12.7 mm >11.4 mm 633 nm±20 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm, Unmounted AC4426-A-SP AC4426-A-SP 15.0 mm >13.5 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm MAC4202-A MAC4202-A 12.0 mm >10.8 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm MAC4301-A MAC4301-A 12.7 mm >11.4 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm MAC4606-A MAC4606-A 25.0 mm >22.5 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm MAC4704-A MAC4704-A 25.4 mm >22.9 mm 400 nm-700 nm View
Aspheric Condenser Lens, Anti-reflection Coating: 400 nm-700 nm MAC4807-A MAC4807-A 50.0 mm >45.0 mm 400 nm-700 nm View
