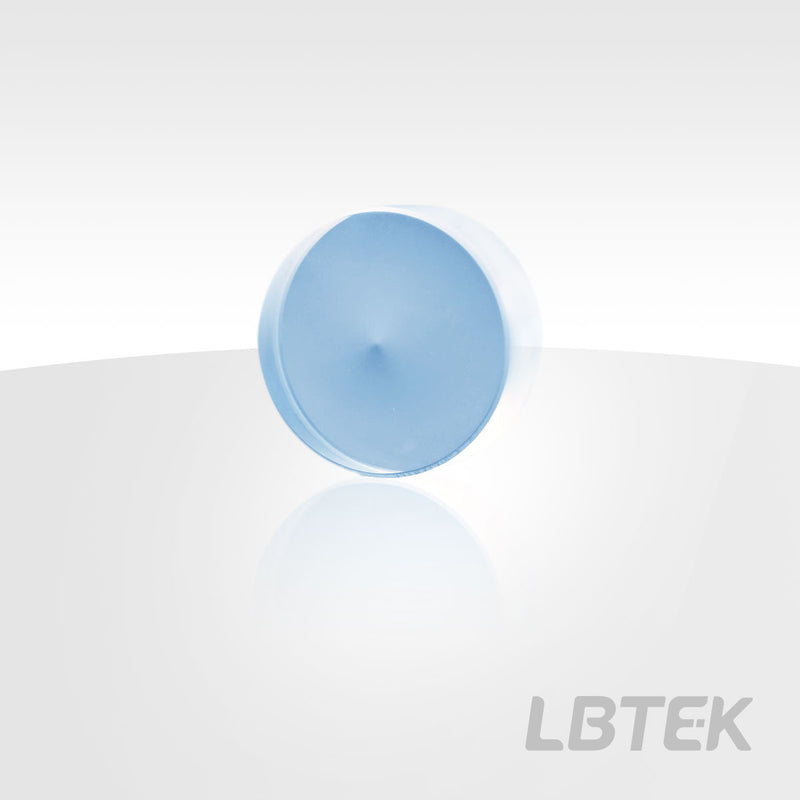

Axicons, Anti-Reflection Coating: 1100 nm-1650 nm CL20650-C

Axicons, Anti-Reflection Coating: 1100 nm-1650 nm — Model CL20650-C

Operating wavelength 1100 nm-1650 nm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

• Optical Material: UV Fused Silica
• Operating Wavelength: 1100 nm-1650 nm
• Application: Used for Generating Annular Beams

An axicon, also referred to as a rotationally symmetric prism, is a lens consisting of a conical surface and a flat plane. It is commonly used to generate beams with Bessel-like intensity distributions or annular (ring-shaped) beams. When converting a collimated beam into an annular beam, the flat surface of the axicon should face the collimated light source. LBTEK manufactures axicons using UV fused silica, which is suitable for a wide range of applications across ultraviolet, visible, and near-infrared spectra. This material offers a low refractive index, low thermal expansion coefficient, high hardness, and excellent performance in harsh working environments. LBTEK offers axicons with two distinct apex angles (α): 2° and 5°. All our axicons are precision-engineered and undergo strict quality control to ensure that customers receive high-quality optical products at reasonable prices. Custom axicon solutions are also available. For special requirements, please contact LBTEK Technical Support.

Axicons, Anti-Reflection Coating: 1100 nm-1650 nm

• Optical Material: UV Fused Silica
• Working Wavelength: 1100 nm-1650 nm
• Application: Used for Generating Annular Beams

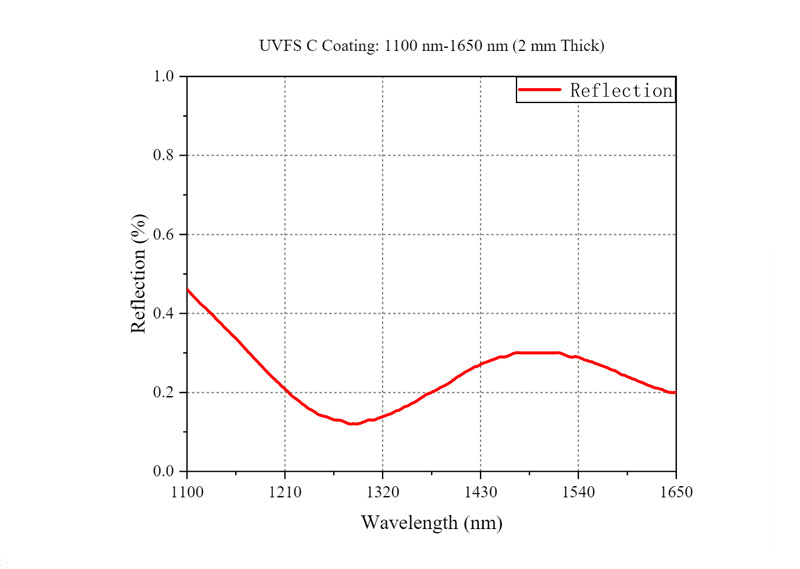

The axicons provided by LBTEK use UV-grade fused silica as the substrate material. They consist of a conical surface and a flat plane, capable of transforming an incident collimated beam into an annular beam. We offer four different apex angles (α) of 2° and 5° to choose from. Each lens features an arrow marked on the edge, pointing toward the conical surface. Additionally, the lenses are coated with an anti-reflection coating for 1100 nm-1650 nm wavelengths to minimize surface reflection and enhance transmittance.
