Axicons, Anti-Reflection Coating: 700 nm-1100 nm CL20650-1064-SP

Axicons, Anti-Reflection Coating: 700 nm-1100 nm — Model CL20650-1064-SP

Operating wavelength 1064 nm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

• Optical Material: UV Fused Silica
• Operating Wavelength: 700 nm-1100 nm
• Application: Used for Generating Annular Beams

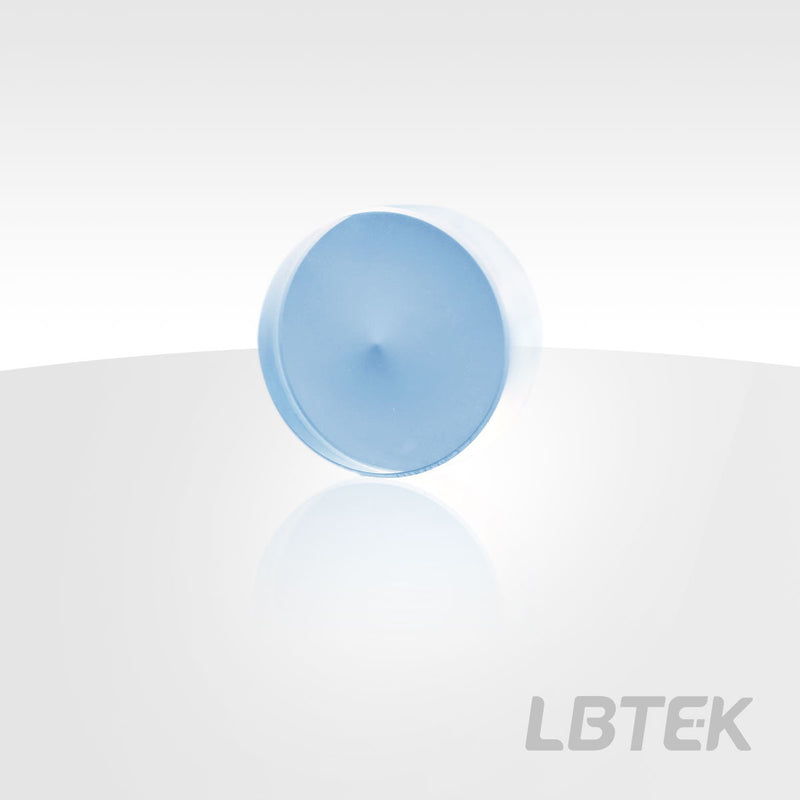

An axicon, also referred to as a rotationally symmetric prism, is a lens consisting of a conical surface and a flat plane. It is commonly used to generate beams with Bessel-like intensity distributions or annular (ring-shaped) beams. When converting a collimated beam into an annular beam, the flat surface of the axicon should face the collimated light source. LBTEK manufactures axicons using UV fused silica, which is suitable for a wide range of applications across ultraviolet, visible, and near-infrared spectra. This material offers a low refractive index, low thermal expansion coefficient, high hardness, and excellent performance in harsh working environments. LBTEK offers axicons with two distinct apex angles (α): 2° and 5°. All our axicons are precision-engineered and undergo strict quality control to ensure that customers receive high-quality optical products at reasonable prices. Custom axicon solutions are also available. For special requirements, please contact LBTEK Technical Support.

Axicons, Anti-Reflection Coating: 700 nm-1100 nm

• Optical Material: UV Fused Silica
• Working Wavelength: 700 nm-1100 nm
• Application: Used for Generating Annular Beams

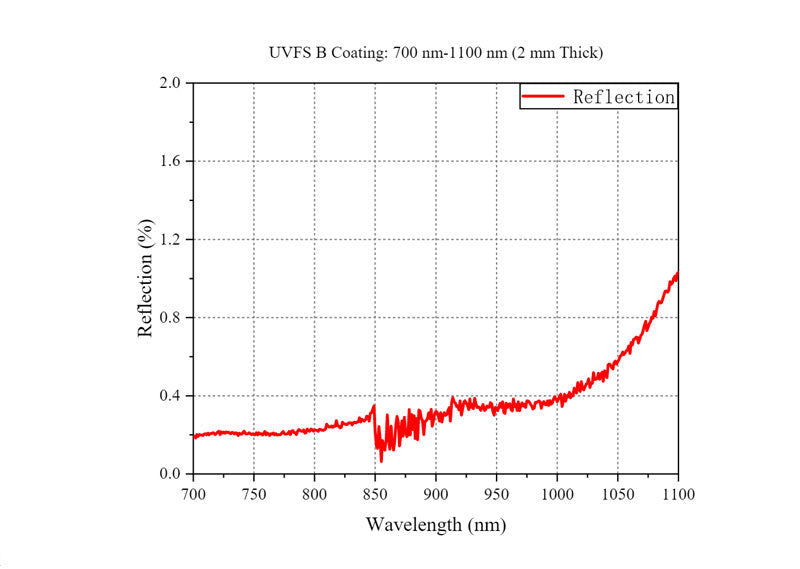

LBTEK's axicons are made of UV-grade fused silica as the substrate material, featuring a conical surface and a flat plane, capable of transforming an incident collimated beam into a ring-shaped beam. We offer four different apex angles (α) of 2° and 5° to choose from. Each lens is marked with an arrow on the edge, pointing toward the conical surface. Additionally, the lenses are coated with an anti-reflection coating for the 700 nm-1100 nm wavelength range to minimize surface reflection and enhance transmittance.
