Bar-Type Holders — Model PAS-QM
✔ In Stock — Ships Today

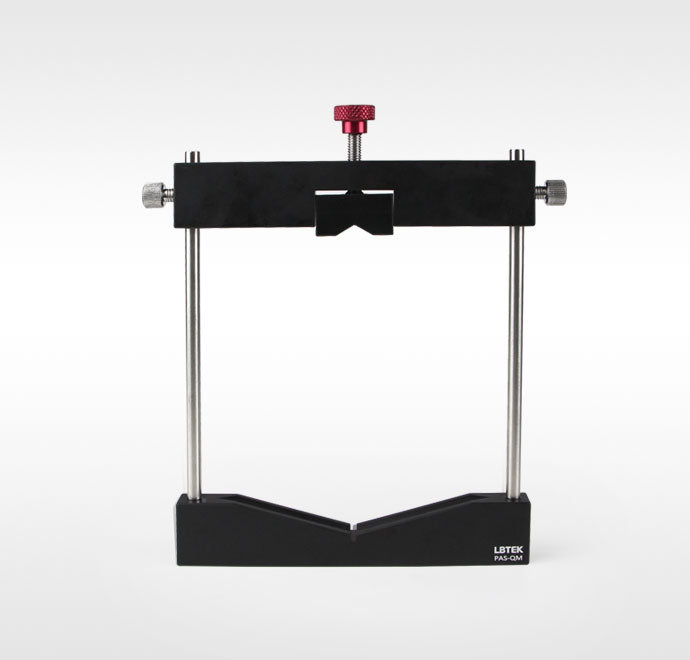

The LBTEK Round Holder can clamp optical components with a maximum diameter of Ø118 mm and a maximum thickness of 12 mm. The upper and lower mounts are connected by stainless steel guide rails. The top ball-head screw is connected to the clamping head, which allows gimbal adjustment. Rotating the knurled knob moves the joint up and down, facilitating the fixation of optical components of different sizes. The two M6×8 thumb screws on the side can secure the position of the upper mount. The V-groove design on the base effectively stabilizes round optical components. The bottom features an M6 mounting hole for expanding optical posts.
Key Features
- For mounting round optical components
- Maximum clamping diameter: Ø118 mm
- Mounting hole: M6
Application
the holder with the round optical components
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Bar-Type Holders (2 variants)
