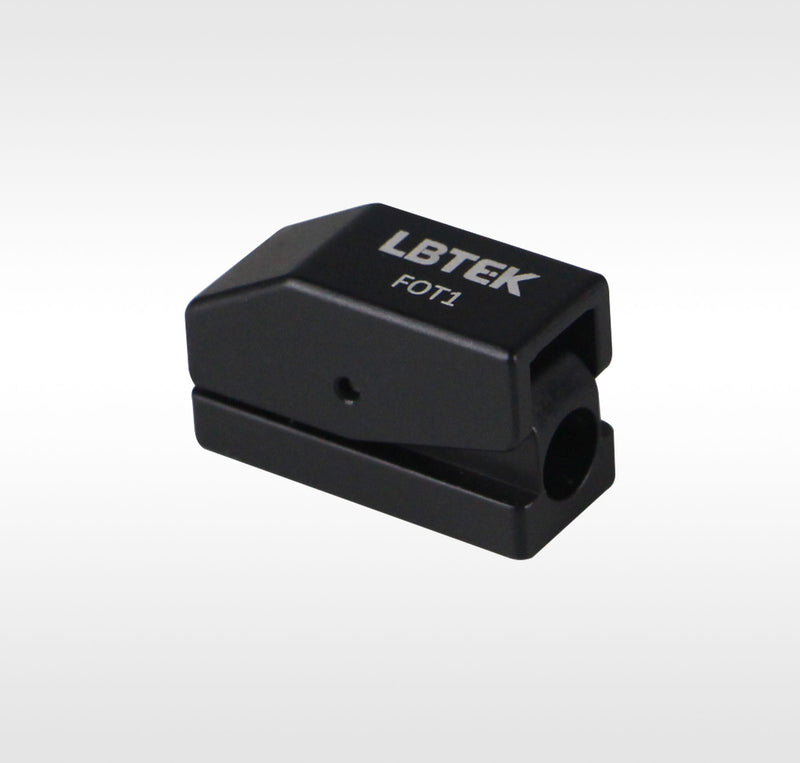

Bare Fiber Adapter FOT1

The LBTEK fiber optic terminator is designed for terminating bare fibers with bare fiber adapters. One end of the connector features a Ø6 mm alignment hole for quick connection to bare fiber adapters, and can be secured by tightening the M4 set screw at the bottom using a 2 mm hex wrench. The other end is the fiber clamping side, suitable for bare fibers with diameters ranging from Ø125 µm to Ø1400 µm. The part in contact with the bare fiber is made of cushioning rubber material, which effectively reduces stress on the fiber while providing sufficient clamping force.

• Rubber-Clamped Fiber Optic, Reducing Stress on the Fiber
• Quick Connection between Fiber and Bare Fiber Adapter
• Compatible with Fibers Ranging from Ø125 µm to Ø1400 µm in Diameter
