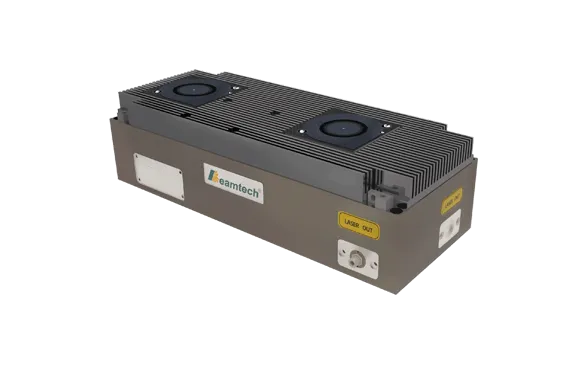

Diode-pumped short-pulse passively Q-switched solid-state laser
The Locmar series is an LD-pumped passively Q-switched short-pulse solid-state laser (DPSS) with output wavelengths ranging from near-infrared to ultraviolet. The single pulse energy can reach up to 300µJ @ 1064nm, with a pulse width of approximately 2ns. The laser utilizes air cooling or conduction cooling, requiring no water and being maintenance-free.
This series is primarily used in applications such as MALDI-TOF mass spectrometry, LiDAR, and LIBS. The Locmar series features a compact design, making it ideal for OEM customers' system integration. Additionally, the laser head employs an optoelectronic separation design, with optical components treated for solidification, ensuring long-term stable operation.
Key Features
- Compact design
- 1064nm, 532nm, and 355nm available
- Repetition rate: up to 500Hz
- Easy-to-use PC software
- Real-time pulse monitoring
- Excellent beam quality, TEM00 mode
- Modes: Single, Continuous, Burst available
| Models | Locmar-1064 | Locmar-532 | Locmar-355 |
|---|---|---|---|
| Wavelength | 1064nm | 532nm | 355nm |
| Pulse energy | 300μJ | 120μJ | 80μJ |
| Energy stability RMS (PTP) | <1%(±5%) | <1.5%(±5%) | <2%(±5%) |
| Repetition rate | ≤200Hz | ≤200Hz | ≤200Hz |
| Pulse width | <3ns | <3ns | <3ns |
| Laser mode | TEM00 | TEM00 | TEM00 |
| M² | ≤1.5 | ≤1.5 | ≤1.5 |
| Beam diameter | 500μm | 500μm | 500μm |
| Warming time | 5min | 5min | 5min |
| Supply voltage | DC24V | DC24V | DC24V |
| Cable length | 80cm | 80cm | 80cm |
| Communication | RS232 & GUI software | RS232 & GUI software | RS232 & GUI software |
| Operation condition | 15°C-35°C, humidity≤60% | 15°C-35°C, humidity≤60% | 15°C-35°C, humidity≤60% |
| Storage condition | -20°C-45°C, humidity≤60% | -20°C-45°C, humidity≤60% | -20°C-45°C, humidity≤60% |
1. RMS: Dev. to average
2. PTP: (MAX-MIN)/(MAX+MIN)
3. Full width half max (FWHM)
4. 10cm from the laser outlet
Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
Locmar — Diode-pumped short-pulse passively Q-switched solid-state laser — Dimensional Drawing (click to enlarge)
