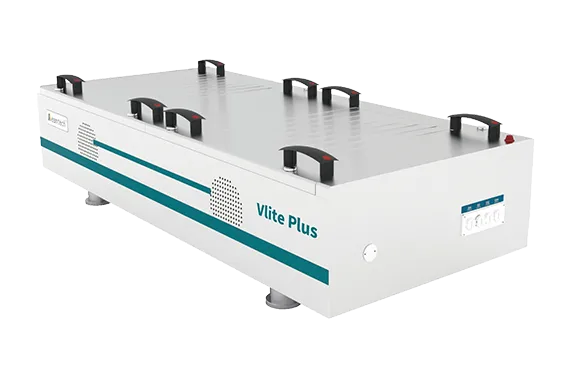

Vlite Plus — High repetition rate&high energy Burst mode Nd:YAG solid-state laser
Design Tools
High repetition rate&high energy Burst mode Nd:YAG solid-state laser
In many scientific applications, high repetition rate and high energy pulse lasers are required. However, achieving high repetition rate and high energy output simultaneously has been challenging in the field of traditional solid-state laser technology. With continuous development and innovation, Beamtech has developed the Vlite Plus series, which achieves both high repetition rate and high energy laser output. The Burst sequence sub-pulse repetition rate is adjustable from 10kHz to 100kHz, with 532nm pulse energy up to 500mJ @ 10kHz, and UV 355nm pulse energy up to 270mJ @ 10kHz. This series of lasers provides solutions for fields such as time-resolved PIV and PLIF in hypersonic flow studies.
Key Features
- Switchable multi-wavelength output: 1064/532/355/266nm
- Dual-pulse mode for PIV applications
- High beam quality, near TEM00 mode
| Models | Vlite Plus |
|---|---|
| Pulse Width | 8-15ns |
| Pulse energy@10kHz @ 1064nm | 1000mJ |
| Pulse energy@10kHz @ 532nm | 500mJ |
| Pulse energy@10kHz @ 355nm | 270mJ |
| Pulse energy@10kHz @ 266nm | 70mJ |
| Pulse energy@100kHz @ 1064nm | 100mJ |
| Pulse energy@100kHz @ 532nm | 50mJ |
| Pulse energy@100kHz @ 355nm | 25mJ |
| Pulse energy@100kHz @ 266nm | 3mJ |
| Pulse frequency within a Burst | 10kHz-1000kHz |
| Max number of pulses in Burst @ 10kHz | 100 |
| Max number of pulses in Burst @ 100kHz | 1000 |
| Duration of Burst | 1-10ms |
| Time between pulse sequences | 10s |
| Linewidth | <1MHz |
| Beam Diameter (1/e²) | 4-9mm |
| M² | <3 |
| Optional functions | PIV dual-pulse mode optional, pulse width 8ns-30ns adjustable; Pulse frequency up to 1MHz (Max number of pulses in Burst is 10000) |
Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
Vlite Plus — High repetition rate&high energy Burst mode Nd:YAG solid-state laser — Dimensional Drawing (click to enlarge)
