Best Form lens, N-BK7, AR Coating: 1100 nm-1650 nm MBFCX10609-C

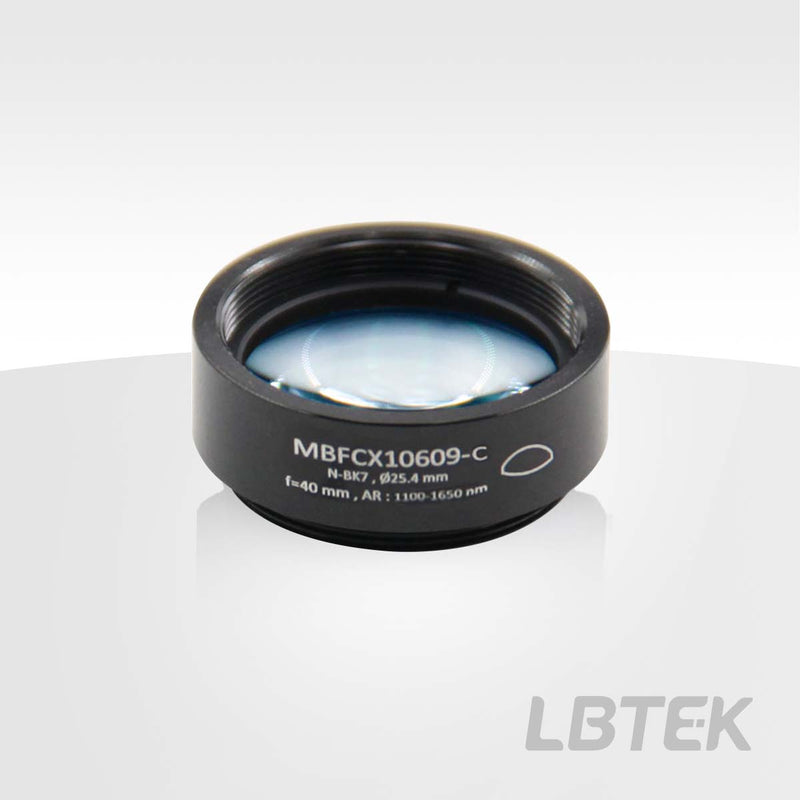

Best Form lens, N-BK7, AR Coating: 1100 nm-1650 nm — Model MBFCX10609-C

Operating wavelength 1100 nm-1650 nm, focal length 40.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

• The optimal choice for high-power applications
• Best performance design for spherical single lenses
• Achieves diffraction-limited performance with small input beam diameters

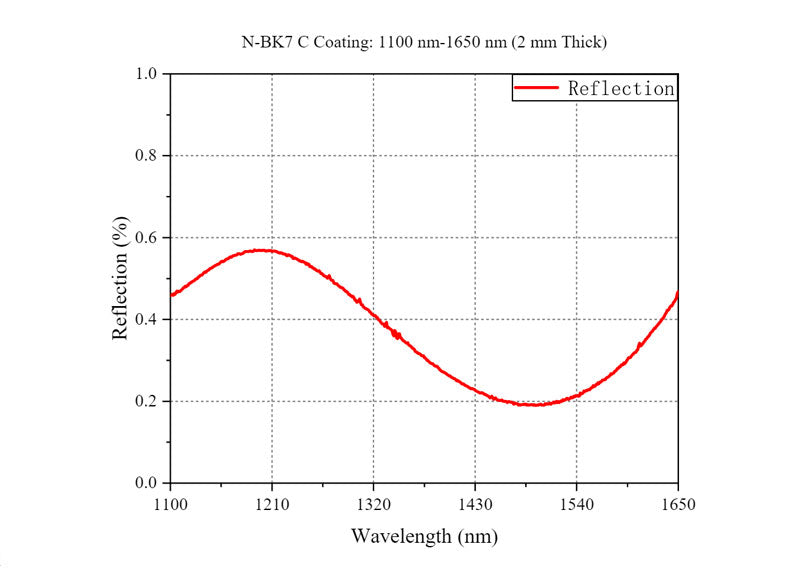

• Operating wavelength: 1100 nm-1650 nm (with anti-reflection coating)

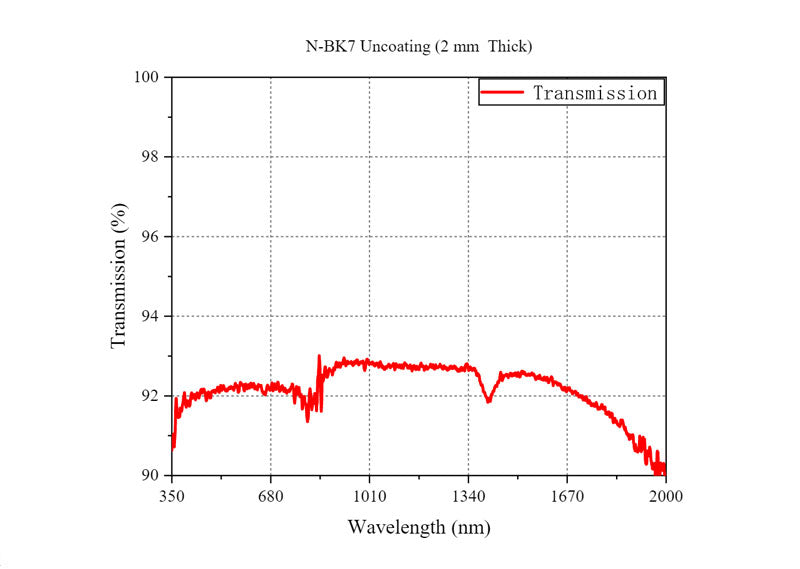

LBTEK Best Form Lenses are specifically designed to minimize spherical aberration in spherical lens systems. For spherical lenses, a given focal length can be achieved with different combinations of surface radii, but each configuration introduces varying levels of spherical error. Best form lenses optimize the radii of curvature on both surfaces to achieve the lowest spherical aberration, making them ideal for use at infinite conjugates. LBTEK Best Form Lenses are manufactured from RoHS-compliant N-BK7 glass, one of the most widely used materials for high-quality optical components. To meet diverse application needs, LBTEK offers both uncoated best form lenses and AR-coated versions optimized for 400–700 nm, 700–1100 nm, and 1100–1650 nm. All lenses undergo precision manufacturing and strict quality control, ensuring that LBTEK delivers high-performance optical components at competitive prices.

Best Form lens, N-BK7, AR Coating: 1100 nm-1650 nm

• Substrate Material: N-BK7
• Operating Wavelength: 1100 nm-1650 nm (AR Coating)
• Application: Imaging, Beam Collimation, Focusing

LBTEK's best form lenses are an ideal replacement for cemented lenses in high-power applications at infinite conjugates. Since best form lenses can optimize the spot size to the minimum, they theoretically achieve diffraction-limited performance. To obtain the best focusing effect, the surface with a smaller radius of curvature should face the collimated light source. All circular lenses from LBTEK come pre-installed with standard lens sleeves or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters by users.
