Blazed Gratings GMA40
GMA40$134.01
In Stock
Design Tools
View all 49 calculators →RoHS
REACH

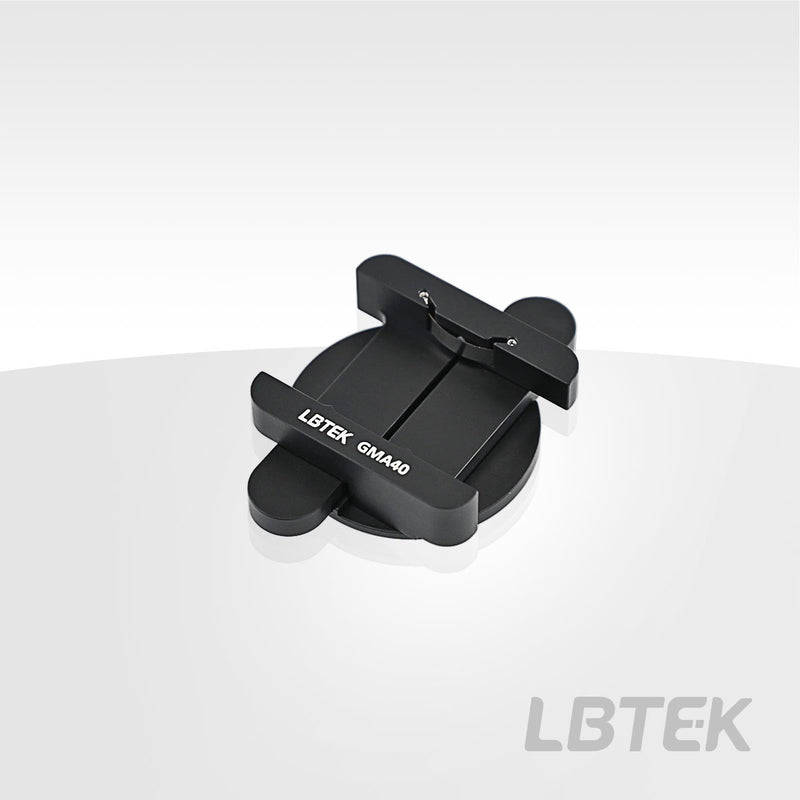

The grating adjustment mount adapter from LBTek can be installed on Ø1-inch smooth-bore optical adjustment mounts. This assembly approach facilitates the adjustment of the pitch and yaw angles of the clamped grating.
The adapter features a simple structure with sliding clamping blocks and machined slots for height adjustment. It employs a three-point fixation mechanism with two bottom contact lines and a planar spring-based top contact, ensuring stable and secure clamping of blazed gratings during angular alignment.
Key Features
- Compatible with Ø1-inch (25.4 mm) smooth-bore optical adjustment mounts
- Pitch and yaw angle adjustment for clamped gratings
- Three-point fixation: two bottom contact lines + planar spring top contact
- Sliding clamping blocks with machined height-adjustment slots
- Material: 6061-T6 aluminum alloy with black anodized finish
- Clampable height range: 20-40 mm
- Minimum clamping width: 18 mm
| Thickness | 6.0 mm |
| Element Material | 6061-T6 Aluminum Alloy |
| Element Dimensions | Clamping height 20-40 mm, min width 18 mm |
| Clear Aperture | Ø25.4 mm (mount compatibility) |
| Surface Quality | Black Anodized |
| Thickness | 5-10 mm (max clampable thickness) |
| Lead Time | In Stock |
