Clear-Edge Optical Mounts — Model AMM3-05C
✔ In Stock — Ships Today

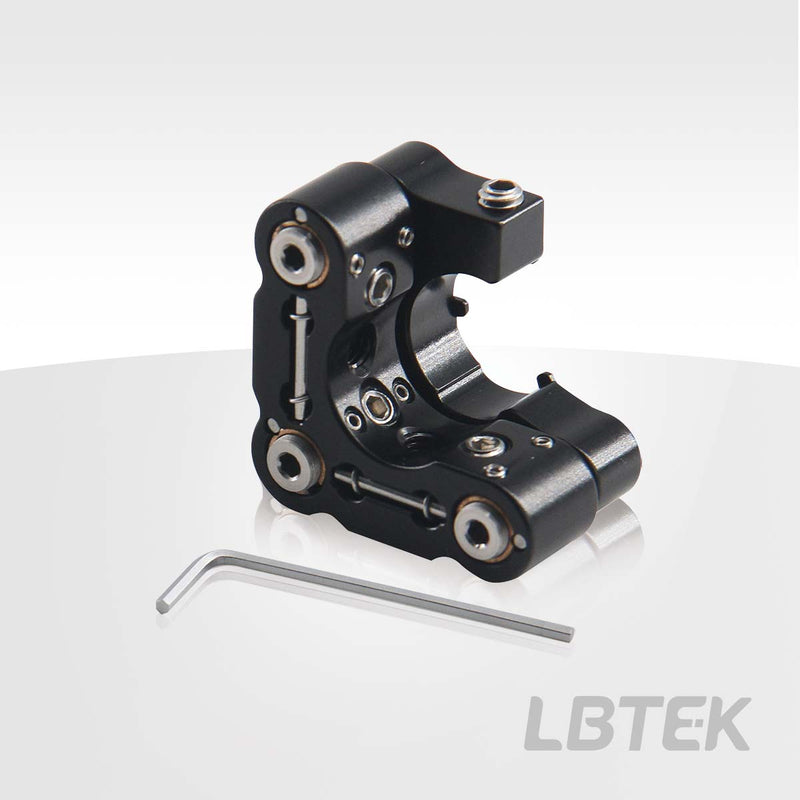

LBTEK Clear-Edge Optical Mount, side-tightening type, designed for mounting optical components with a diameter of 12.7 mm. The optical component is placed from the rear plate direction into the smooth bore hole of the front plate of the mount, then secured with a side rubber-tipped screw. The mount features one M4 threaded hole on either the side or the bottom. Purchasing the LBTEK Clear-Edge Optical Mount 0.5-inch Series includes a complimentary 2.0 mm hex key.
Key Features
- For optical components with a diameter of 12.7 mm
- Applicable to optical components with a minimum thickness of 3.0mm
- Left-handed and right-handed mounting
Application
Clear-Edge Optical Mounts are commonly used for Ø12.7 mm optical components.
No specifications available for this product.
Product Family: Clear-Edge Optical Mounts (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Clear-Edge Optical Mounts AMM3-05C Current |
AMM3-05C
| — | — | — | |
| Clear-Edge Optical Mounts AMM3-1C |
AMM3-1C
| — | — | — | View |
| Clear-Edge Optical Mounts AMM3-2C |
AMM3-2C
| — | — | — | View |
| Clear-Edge Optical Mounts AMM3-2C1 |
AMM3-2C1
| — | — | — | View |
| Clear-Edge Optical Mounts ACMM-2C |
ACMM-2C
| — | — | — | View |
| Clear-Edge Optical Mounts ACMM-3C |
ACMM-3C
| — | — | — | View |
| Clear-Edge Optical Mounts AMMC-2C |
AMMC-2C
| — | — | — | View |
