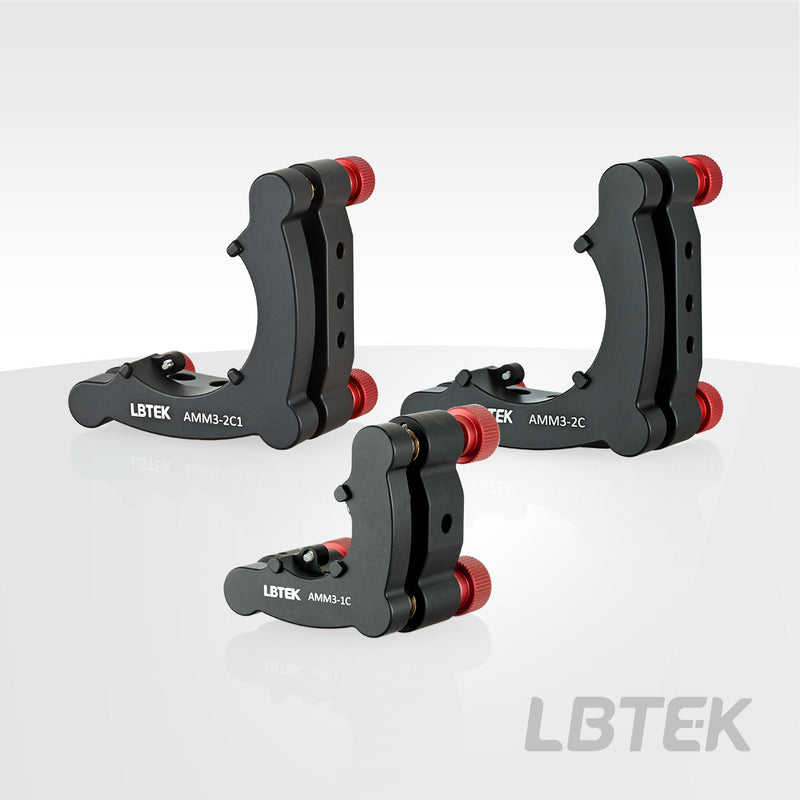

Clear-Edge Optical Mounts — Model AMM3-2C1
✔ In Stock — Ships Today
LBTEK Clear-Edge Optical Mount, designed for optical components with diameters of 25.4 mm and 50.8 mm. The optical components are secured by two rubber-tipped screws on the back of the edge-free optical mount. Each side or bottom of the Clear-Edge Optical Mount features an M4 countersunk mounting hole. Purchasing the LBTEK Clear-Edge Optical Mount 1-inch and 2-inch series includes two M4 socket head cap screws and one each of 1.5 mm and 2.0 mm hex keys.
Key Features
- For mounting optical components with Ø25.4 mm or Ø50.8 mm diameter
- AMM3-1C applicable to optical components with thickness range of 2.5~6.5 mm
- AMM3-2C applicable to optical components with thickness range of 8.0~12.2 mm
- AMM3-2C1 applicable to optical components with thickness range of 9.0~13.0 mm
- Left-handed or right-handed mounting
Application
Clear-Edge Optical Mounts are commonly used for Ø25.4 mm optical components.
No specifications available for this product.
Product Family: Clear-Edge Optical Mounts (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Clear-Edge Optical Mounts AMM3-05C |
AMM3-05C
| — | — | — | View |
| Clear-Edge Optical Mounts AMM3-1C |
AMM3-1C
| — | — | — | View |
| Clear-Edge Optical Mounts AMM3-2C |
AMM3-2C
| — | — | — | View |
| Clear-Edge Optical Mounts AMM3-2C1 Current |
AMM3-2C1
| — | — | — | |
| Clear-Edge Optical Mounts ACMM-2C |
ACMM-2C
| — | — | — | View |
| Clear-Edge Optical Mounts ACMM-3C |
ACMM-3C
| — | — | — | View |
| Clear-Edge Optical Mounts AMMC-2C |
AMMC-2C
| — | — | — | View |
