Clear-Edge Optical Mounts — Model AMMC-2C
✔ In Stock — Ships Today

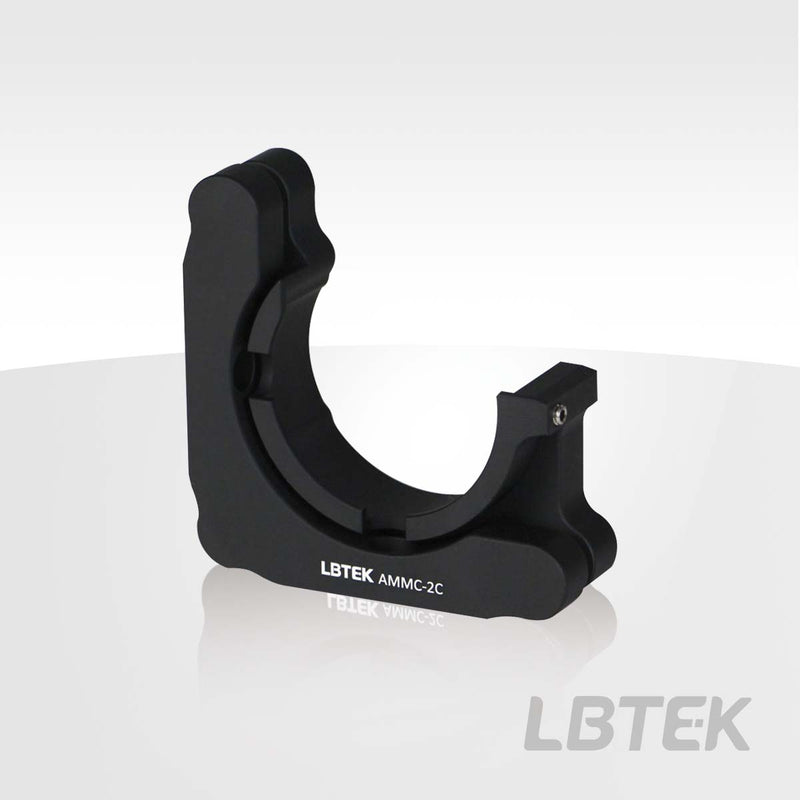

LBTEK AMMC-2C Center-Type Clear-Edge Mount, featuring a smooth bore without threads and a semi-open design, allows the beam to reflect from one mount to another at a small incident angle θ. Optical components are secured using set screws. The mount base is equipped with both M4 countersunk holes and M6 threaded holes for compatibility—M4 countersunk holes connect to optical posts with M4 threaded holes, while M6 threaded holes connect to posts with M6 threaded holes. The centerline of the optical component mounting surface aligns with the center of the post's mounting hole, simplifying the beam alignment process.
Key Features
- Material: 6061-T6 aluminum alloy
- Two precision adjusters
- Secured with M4 rubber-tipped set screws
- Optical component mounting holes featuring an open design
- Surface centerline aligning with the center of the post's mounting hole
Application
The AMMC-2C product is commonly used for mounting optical components such as mirrors.
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø50.8 mm |
| Optical component mounting method | M4 rubber-tipped set screw, compatible with 2mm hex key |
| Minimum applicable thickness for optical components | 2 mm |
| Regulator Specifications / Quantity | M6/2 pcs |
| Adjustment accuracy | 0.23°/rotation |
| Adjustable pitch/yaw angle range | ±3° |
| Installation Method | Post connection |
| Mounting Hole Specifications/Quantity | M6 threaded hole compatible with M4 countersunk hole / 2 pcs |
Product Family: Clear-Edge Optical Mounts (7 variants)
