Concave Dielectric Mirrors CM05-F100-370-SP
CM05-F100-370-SP$117.94
In Stock
Key Specifications
Wavelength
370.0nm
Diameter
12.7mm
Reflectance
99.5%
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

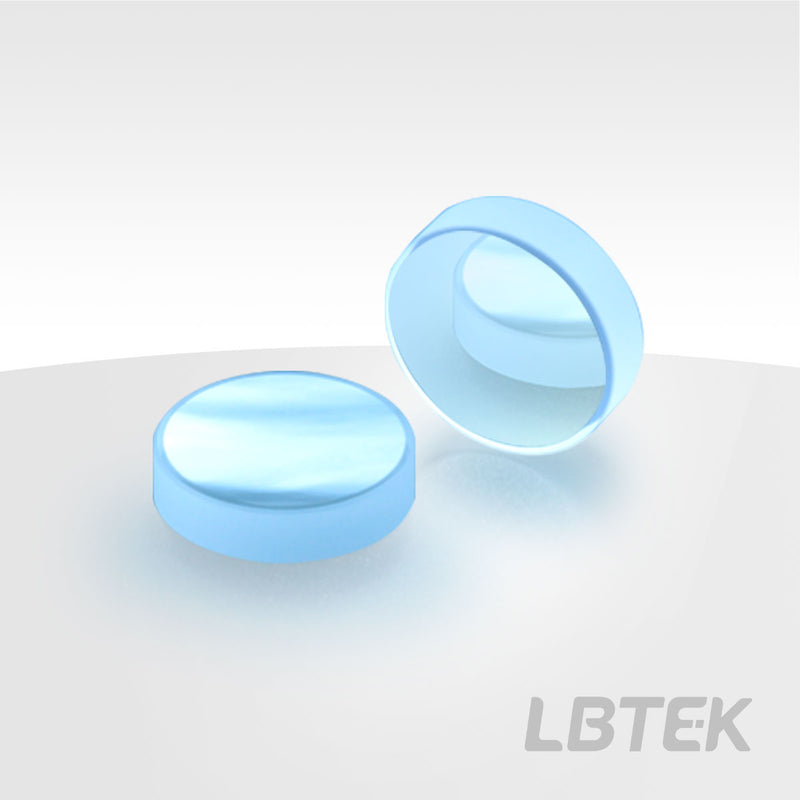

Concave Dielectric Mirrors — Model CM05-F100-370-SP
Operating wavelength 370 nm, focal length -100 mm, Ø12.7 mm, substrate UV Fused Silica.
Product Description
- Optical material: UV Fused Silica
- Reflectivity Greater than 99%
- Beam Focusing, Collimation, Collection and Imaging
Concave mirrors can be used for beam focusing, collimation, or light collection, offering high reflectivity within their operational range. LBTEK dielectric-coated concave mirrors feature a dielectric reflective film on the concave surface and a frosted backside, achieving an average reflectivity of up to 99% across the working wavelength range. In addition to standard products, LBTEK can customize concave mirrors with different sizes, focal lengths, and working wavelengths. For inquiries, please contact LBTEK Technical Support.
Concave Dielectric Mirrors
- Material: UV Fused Silica
- Reflectivity Greater than 99%
- Beam Focusing, Collimation, Collection, and Imaging
Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha
| Clear Aperture | 90% CA |
| Operating Wavelength | 370 nm |
| Reflectance | R>99.5%@370 nm, 0°-45° |
| Diameter | 12.7 mm |
| Substrate Material | UV fused silica |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Concave Dielectric Mirrors (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Concave Dielectric Mirrors CM05-F100-370-SP Current |
CM05-F100-370-SP
| 12.7 mm | 90% CA | 370 nm | |
| Concave Dielectric Mirrors CM05-F100-B |
CM05-F100-B
| 12.7 mm | 90% CA | 750 nm-1100 nm | View |
