Concave Dielectric Mirrors CM05-F100-B

Concave Dielectric Mirrors — Model CM05-F100-B

Operating wavelength 750 nm-1100 nm, focal length -100 mm, Ø12.7 mm, substrate UV Fused Silica.

Product Description

• Optical material: UV Fused Silica

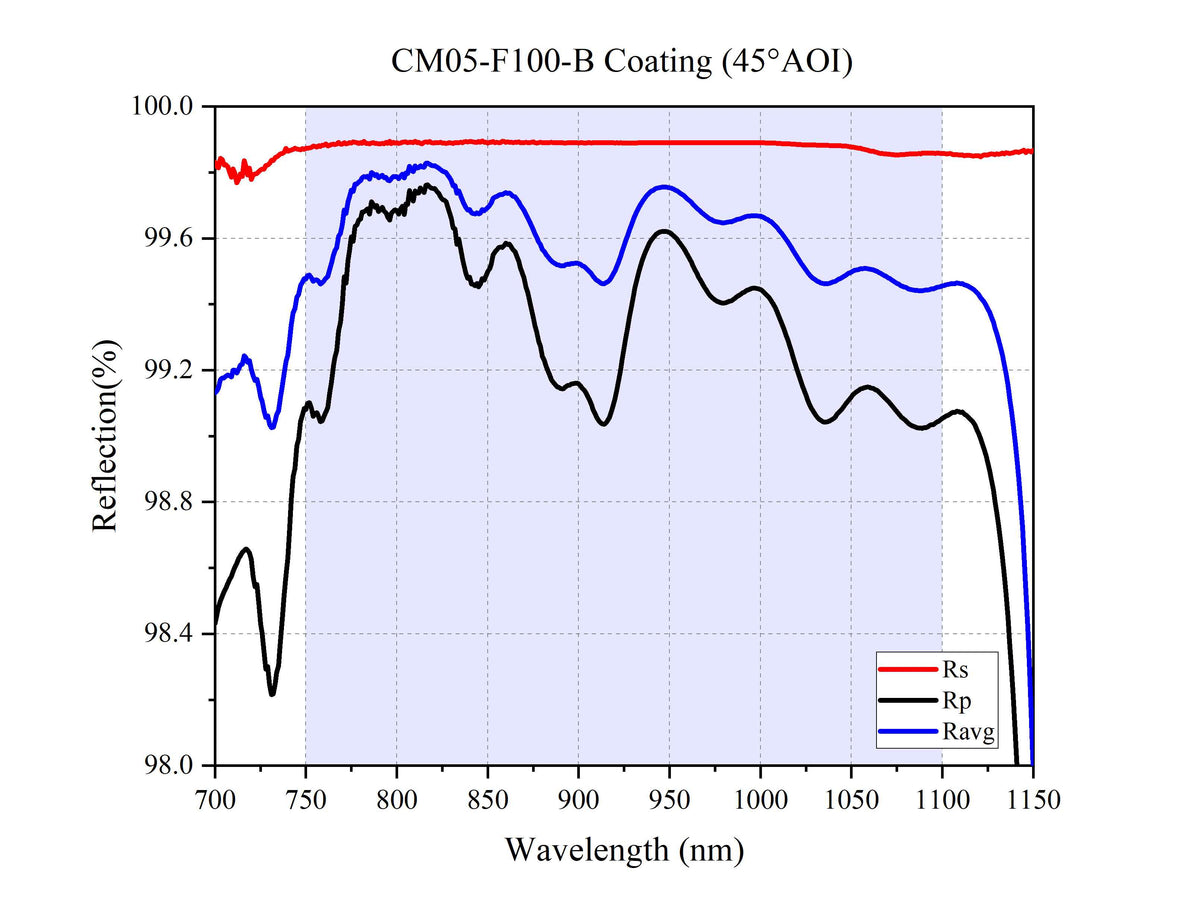

• Reflectivity Greater than 99%
• Beam Focusing, Collimation, Collection and Imaging

Concave mirrors can be used for beam focusing, collimation, or light collection, offering high reflectivity within their operational range. LBTEK dielectric-coated concave mirrors feature a dielectric reflective film on the concave surface and a frosted backside, achieving an average reflectivity of up to 99% across the working wavelength range. In addition to standard products, LBTEK can customize concave mirrors with different sizes, focal lengths, and working wavelengths. For inquiries, please contact LBTEK Technical Support.

Concave Dielectric Mirrors

• Material: UV Fused Silica
• Reflectivity Greater than 99%
• Beam Focusing, Collimation, Collection, and Imaging

LBTEK dielectric-coated concave mirrors are suitable for beam focusing, collimation, or light collection, featuring high reflectivity within their operational range. The concave surface of LBTEK dielectric-coated concave mirrors is coated with a dielectric reflective film, while the back side undergoes frosted treatment. The reflectivity can reach an average of 99% across the working wavelength range.
