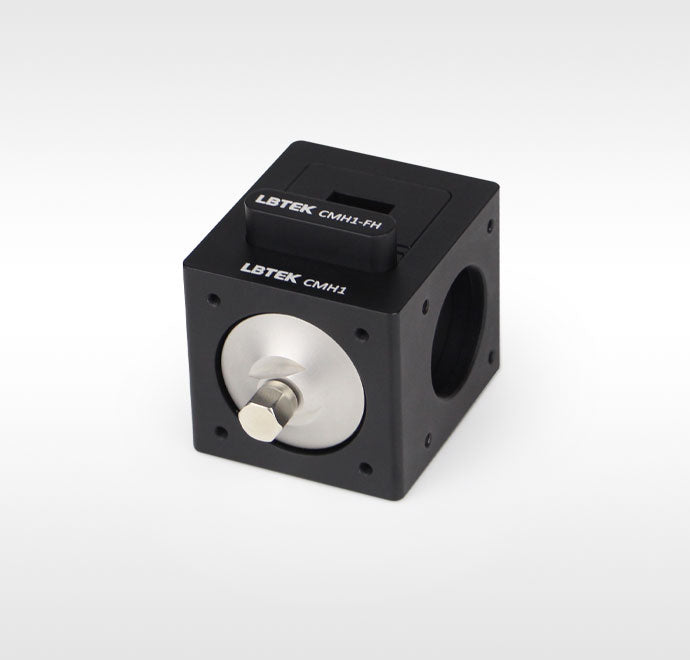

Cuvette Holder CMH1

The LBTEK Cuvette Holder with Fiber Optic Port CMH1 is designed to hold cuvettes measuring 12.5 mm × 12.5 mm × 45 mm with a Z-direction dimension of 8.5 mm. This holder features four SM1 optical ports on the side, compatible with SM1 lens tubes, and includes two SM1 protective end caps (SM1-C2) to cover unused ports, preventing dust from entering the components. The cuvette holder includes the following accessories: (1) An interchangeable SMA-to-SM1 fiber adapter, enabling direct connection of the cuvette holder to fiber-based light sources, detectors, or spectrometers for SMA-terminated fiber output. This adapter incorporates a fixed, non-removable uncoated aspheric condenser lens (AC4101: f=8 mm, NA=0.61). For applications requiring different lenses, the fiber adapter can be replaced with LBTEK's CMH1-FOT fiber adapter. (2) A CMH1-FH filter holder accommodating Ø25.4 mm filters with thicknesses ranging from 3.5 mm to 7 mm. The filter holder is positioned between the cuvette and one of the ports to achieve wavelength isolation of incident or emitted radiation. For quick filter replacement, LBTEK offers the Ø25.4 mm filter holder CMH1-FH for separate purchase. Users can select suitable accessories based on their specific requirements.
