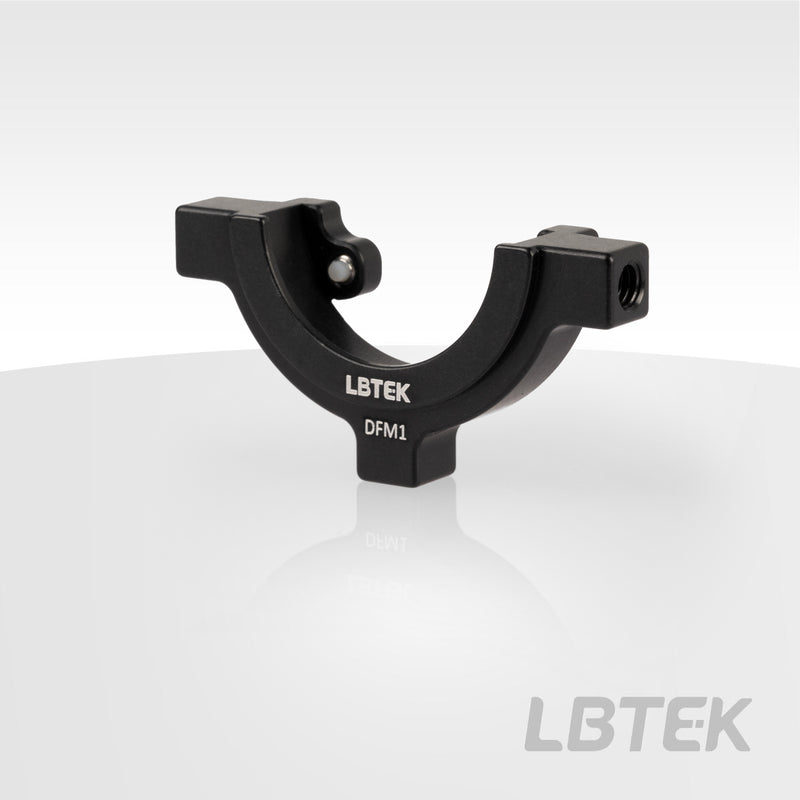

D-Shaped Optical Mounts — Model DFM1
✔ In Stock — Ships Today
LBTEK Fixed D-Shaped Optical Mount, designed for mounting D-shaped optical components with a maximum thickness of 6.1 mm and Ø25.4 mm. The optical component is secured by two M3 rubber-tipped screws on the back of the mount. This mount can be installed either horizontally or vertically, with M4 threaded mounting holes. For space-constrained applications, this mount can also be used to install Ø25.4 mm round flat optical components.
Key Features
- D-shaped mirrors can be installed
- Mounted horizontally or vertically
- Maximum thickness of applicable optical components: 6.1mm
Application
Fixed D-shaped optical mount with post
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: D-Shaped Optical Mounts (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| D-Shaped Optical Mounts DFM1 Current |
DFM1
| — | — | — | |
| D-Shaped Optical Mounts AMM-1DR |
AMM-1DR
| — | — | — | View |
| D-Shaped Optical Mounts AMM-05DR |
AMM-05DR
| — | — | — | View |
| D-Shaped Optical Mounts AMM3-05DR |
AMM3-05DR
| — | — | — | View |
| D-Shaped Optical Mounts AMM3-1DR |
AMM3-1DR
| — | — | — | View |
| D-Shaped Optical Mounts AMM-05DL |
AMM-05DL
| — | — | — | View |
| D-Shaped Optical Mounts AMM3-05DL |
AMM3-05DL
| — | — | — | View |
| D-Shaped Optical Mounts AMM-1DL |
AMM-1DL
| — | — | — | View |
| D-Shaped Optical Mounts AMM3-1DL |
AMM3-1DL
| — | — | — | View |
