Diameter-Adjustable Lens Mounts — Model LHS1
✔ In Stock — Ships Today

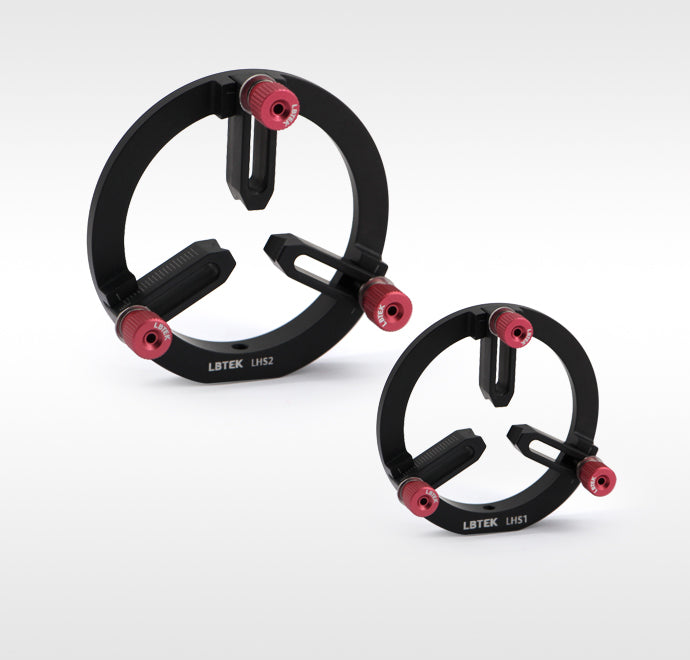

The LBTEK Adjustable Lens Mount is designed for optical components of non-standard sizes. The Delrin clamping arms feature a V-groove on one side and a flat surface on the other, allowing reversible use for adjusting and mounting optical components of different diameters. The clamping arms are marked with 1 mm and 5 mm reference lines for mounting positions, facilitating repeatable positioning. The base includes an M4 threaded hole for mounting on 12.7 mm diameter posts.
Key Features
- LHS1 adjustable mounting diameter range 7.5 mm~45 mm
- LHS2 adjustable mounting diameter range 19 mm~57.5 mm
Application
Adjustable optical component center position
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Diameter-Adjustable Lens Mounts (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Diameter-Adjustable Lens Mounts LHS1 Current |
LHS1
| — | — | — | |
| Diameter-Adjustable Lens Mounts LHS2 |
LHS2
| — | — | — | View |
