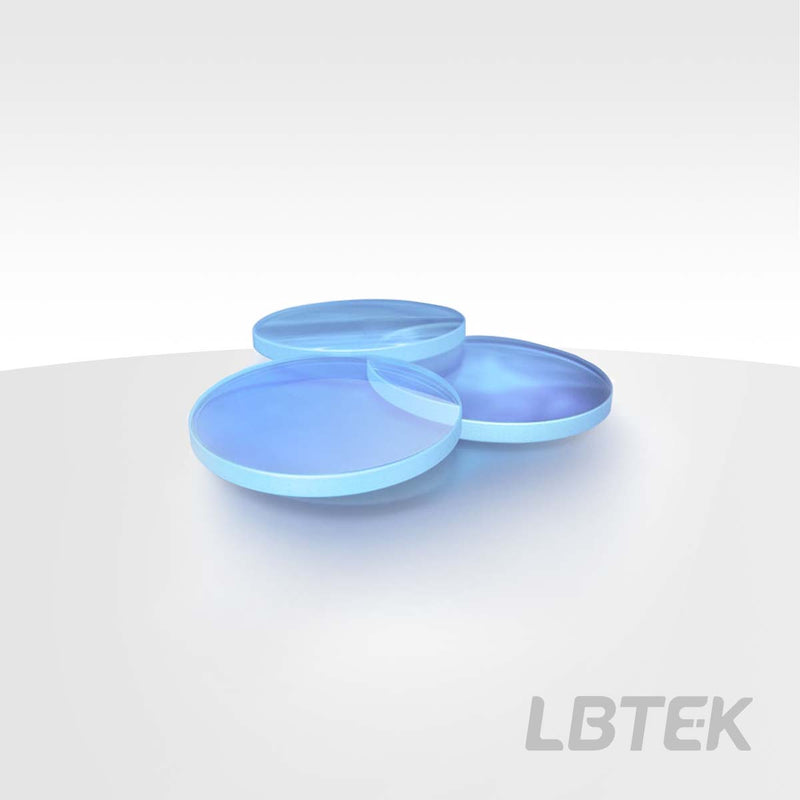

Double-Convex Lenses, N-BK7, AR Coating: 1100 nm-1650 nm, Unmounted BCX10615-C

Double-Convex Lenses, N-BK7, AR Coating: 1100 nm-1650 nm, Unmounted — Model BCX10615-C

Operating wavelength 1100 nm-1650 nm, focal length 150.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

• Optical material: N-BK7
• Operating wavelength: 1100 nm-1650 nm (AR Coating)
• Application: imaging, beam expansion or reduction, convergence

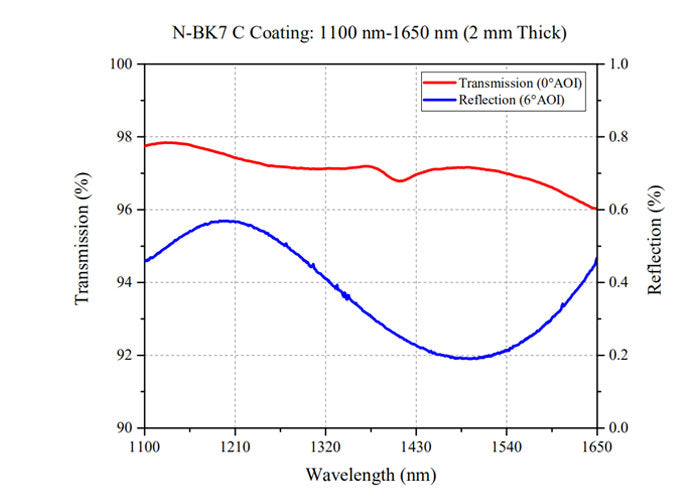

The double-convex lens has a positive focal length and can be used to focus collimated beams or collimate point light sources. Additionally, both surfaces of the lens are coated with an anti-reflection coating for 1100 nm–1650 nm, which helps reduce the lens's reflectance. Double-convex lenses are widely used in imaging applications, with N-BK7 being the most common lens material, applied in visible and near-infrared fields. LBTEK selects N-BK7 to manufacture various lenses, all of which undergo fine processing and strict quality control. This ensures that LBTEK provides the users with high-quality lens products at reasonable prices.

Double-Convex Lenses, N-BK7, AR Coating: 1100 nm-1650 nm, Unmounted

• Substrate material: N-BK7
• Operating wavelength: 1100 nm-1650 nm (anti-reflection coating)
• Application: imaging, beam expansion or reduction

The LBTEK Double-Convex Lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK manufactures double-convex lenses using N-BK7 glass, which is the most commonly used material for high-quality optical components, primarily for visible and near-infrared applications. All circular lenses from LBTEK are pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters.
