What is the damage threshold of Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A?

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A has a laser-induced damage threshold (LIDT) of 0.19 J/cm².

What are the physical dimensions of Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A?

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A dimensions: Diameter: 25.4 mm.

What is the focal length of Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A?

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A has a focal length of 25.4 mm.

WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A

Name: Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A
Brand: WaveQuanta
SKU: BCX10606-A
Price: 50.39 SGD
Availability: InStock

BCX10606-A

$50.39

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 25.4mm

LIDT 0.19J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted — Model BCX10606-A

Operating wavelength 400 nm-700 nm, focal length 25.4 mm, Ø25.4 mm, substrate N-BK7.

Product Description

Optical material: N-BK7
Operating wavelength: 400 nm-700 nm (anti-reflection coating)
Application: imaging, beam expansion or reduction, convergence

The double-convex lens has a positive focal length and can be used to focus collimated beams or collimate point light sources. Additionally, both surfaces of the lens are coated with an anti-reflection coating for 400 nm-700 nm, which helps reduce the lens's reflectance. Double-convex lenses are widely used in imaging applications, with N-BK7 being the most common lens material, applied in visible and near-infrared fields. LBTEK selects N-BK7 to manufacture various lenses, all of which undergo fine processing and strict quality control. This ensures that LBTEK provides the users with high-quality lens products at reasonable prices.

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted

Substrate material: N-BK7
Operating wavelength: 400 nm-700 nm (anti-reflection coating)
Application: Imaging, beam expansion or reduction, focusing

The LBTEK Double-Convex Lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK manufactures double-convex lenses using N-BK7 glass, which is the most commonly used material for high-quality optical components, primarily for visible and near-infrared applications. All circular lenses from LBTEK are pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters.

Clear Aperture	90% CA
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance	+0.00/-0.10 mm
Clear Aperture	90% CA
Operating Wavelength	400 nm-700 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Curve - N-BK7 UN

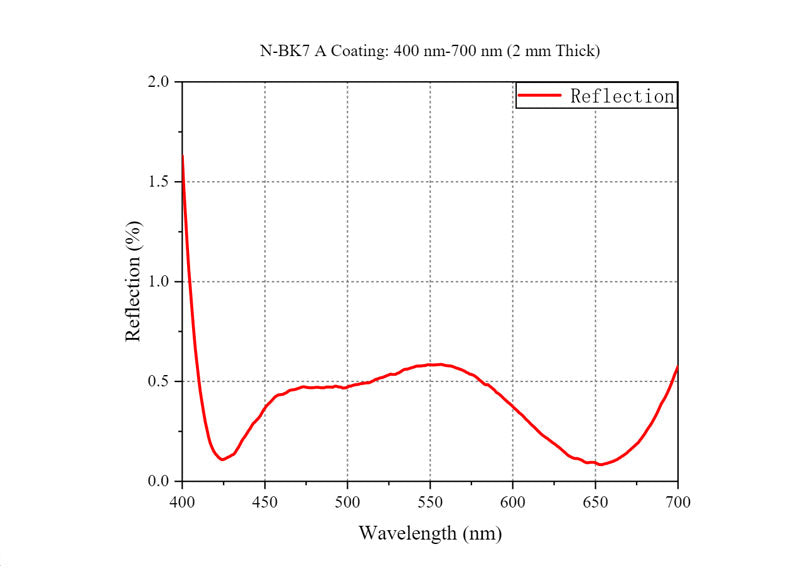

Curve - N-BK7 A

Product Family: Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm (50 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10313-A	`MBCX10313-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10310-A	`MBCX10310-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10309-A	`MBCX10309-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10307-A	`MBCX10307-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10305-A	`MBCX10305-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10304-A	`MBCX10304-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10303-A	`MBCX10303-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10621-A	`MBCX10621-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10623-A	`BCX10623-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10622-A	`BCX10622-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10620-A	`BCX10620-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10619-A	`BCX10619-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10618-A	`BCX10618-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10617-A	`BCX10617-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10616-A	`BCX10616-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10615-A	`BCX10615-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10614-A	`BCX10614-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10613-A	`BCX10613-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10612-A	`BCX10612-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10611-A	`BCX10611-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10610-A	`BCX10610-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10609-A	`BCX10609-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10608-A	`BCX10608-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10607-A	`BCX10607-A`	25.4 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10606-A Current	`BCX10606-A`	25.4 mm	90% CA	400 nm-700 nm
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10811-A	`BCX10811-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10812-A	`BCX10812-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10813-A	`BCX10813-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10814-A	`BCX10814-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10815-A	`BCX10815-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10816-A	`BCX10816-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10817-A	`BCX10817-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10818-A	`BCX10818-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10819-A	`BCX10819-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10820-A	`BCX10820-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10821-A	`BCX10821-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10822-A	`BCX10822-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10823-A	`BCX10823-A`	50.8 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10315-A	`BCX10315-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10313-A	`BCX10313-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10310-A	`BCX10310-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10309-A	`BCX10309-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10307-A	`BCX10307-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10305-A	`BCX10305-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10304-A	`BCX10304-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10303-A	`BCX10303-A`	12.7 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10202-A	`BCX10202-A`	9.0 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10207-A	`BCX10207-A`	9.0 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10002-A	`BCX10002-A`	6.0 mm	90% CA	400 nm-700 nm	View
Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm, Unmounted BCX10621-A	`BCX10621-A`	25.4 mm	90% CA	400 nm-700 nm	View
