WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 700 nm-1100 nm MBCX10606-B

MBCX10606-B
$64.90
In Stock
Key Specifications
Wavelength 700.0nm
Diameter 25.4mm
LIDT 0.8J/cm²
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Double-Convex Lenses, N-BK7, AR Coating: 700 nm-1100 nm — Model MBCX10606-B

Operating wavelength 700 nm-1100 nm, focal length 25.4 mm, Ø25.4 mm, substrate N-BK7.

Product Description

  • Optical material: N-BK7
  • Operating wavelength: 700 nm-1100 nm (AR Coating)
  • Application: imaging, beam expansion or reduction, convergence

The double-convex lens has a positive focal length and can be used to focus collimated beams or collimate point light sources. Additionally, both surfaces of the lens are coated with an anti-reflection coating for 700 nm–1100 nm, which helps reduce the lens's reflectance. Double-convex lenses are widely used in imaging applications, with N-BK7 being the most common lens material, applied in visible and near-infrared fields. LBTEK selects N-BK7 to manufacture various lenses, all of which undergo fine processing and strict quality control. This ensures that LBTEK provides the users with high-quality lens products at reasonable prices.

Double-Convex Lenses, N-BK7, AR Coating: 700 nm-1100 nm

  • Substrate material: N-BK7
  • Operating wavelength: 700 nm-1100 nm (AR Coating)
  • Application: imaging, beam expansion or reduction, convergence

The LBTEK Double-Convex Lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK manufactures double-convex lenses using N-BK7 glass, which is the most commonly used material for high-quality optical components, primarily for visible and near-infrared applications. All circular lenses from LBTEK are pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters.

Clear Aperture90% CA
Damage Threshold0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Diameter Tolerance+0.00/-0.10 mm
Clear Aperture90% CA
Operating Wavelength700 nm-1100 nm
Diameter25.4 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Damage Threshold0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Low damage threshold detected (0.8 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - N-BK7 UN
Curve - N-BK7 UN

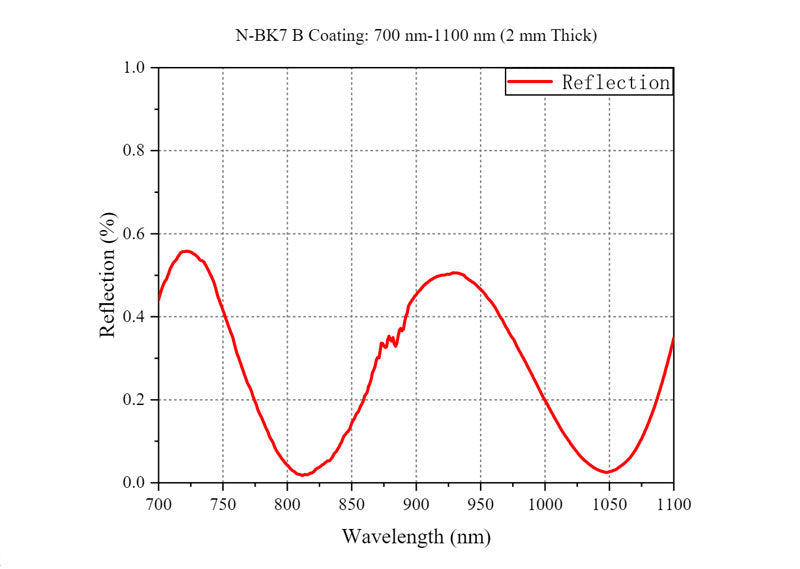

Curve - N-BK7 B
Curve - N-BK7 B

Product Family: Double-Convex Lenses, N-BK7, AR Coating: 700 nm-1100 nm (50 variants)
