DR Laser

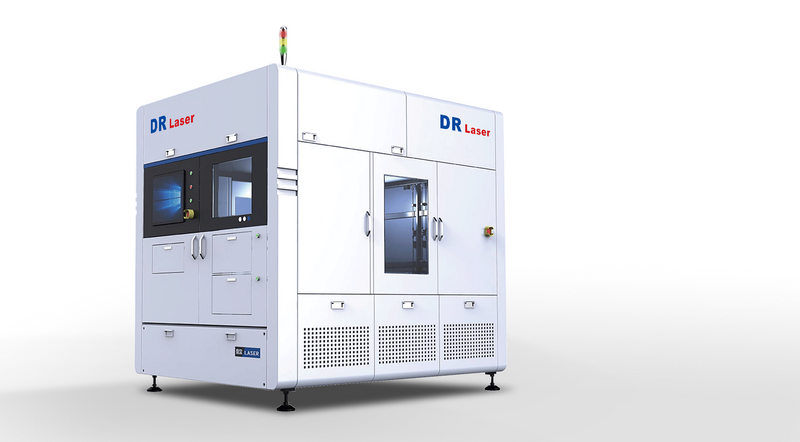

Kleave Series — Laser Wafer Dicing Platform
KLEAVEContact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
DR Laser · Semiconductor · Advanced Display · Production-scale equipment
Applications
- MEMS & Sensors (accelerometers, gyroscopes, pressure sensors)
- RF Devices & SAW Filters
- MiniLED / MicroLED & sapphire substrates
- Logic IC / HBM 2.5D advanced packaging
- Low-k & fragile material processing (GaAs, SiC)
- DBG, DAF, mold/resin package dicing
- Glass / silicon bonded wafer singulation
Technical Notes
- Track record: 5,000+ nanosecond laser equipment shipped; 2,000+ picosecond units shipped (DR Laser disclosure).
- Source: DR Laser Kleave Series brochure (2025, lite version). Download the brochure from the Documents tab for full details.
This is a quoted product. Pricing, lead time, and final configuration depend on substrate, throughput, and integration requirements. Use the Contact Sales button to start an RFQ — WaveQuanta acts as DR Laser's regional partner and will route your inquiry to the BD team in Singapore.
| Models | Kleave Series |
|---|---|
| Process Type | Internal Dicing / Surface Scribe & Grooving / Full Cut |
| Laser Source Architecture | FlexiCore — multi-engine: IR / Green / UV / DUV |
| Pulse Width Options | ns / ps / fs (ultrafast cold cutting) |
| Supported Substrates | Silicon · Sapphire · GaAs · SiC · Lithium Niobate · Lithium Tantalate · Glass |
| Beam Synchronization | SynchroCut — real-time vision + stage alignment, multi-street cutting |
| Autofocus | SmartFocus 3D — multi-axis wafer bow & thickness compensation |
| Vision Control | Precision Vision Suite — in-line groove width detection + warpage correction |
| Recipe & SPC Software | zwave — full versioning, lot/wafer linkage, Cpk/Ppk dashboards |
| Fab Integration | FabLink — SECS/GEM, OPC UA, REST APIs, multi-site tenancy, OIDC/SSO |
| Customization | Configurable; consult R&D team |
Track record: 5,000+ nanosecond laser equipment shipped; 2,000+ picosecond units shipped (DR Laser disclosure).
Source: DR Laser Kleave Series brochure (2025, lite version). Download the brochure from the Documents tab for full details.
Source: DR Laser manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
