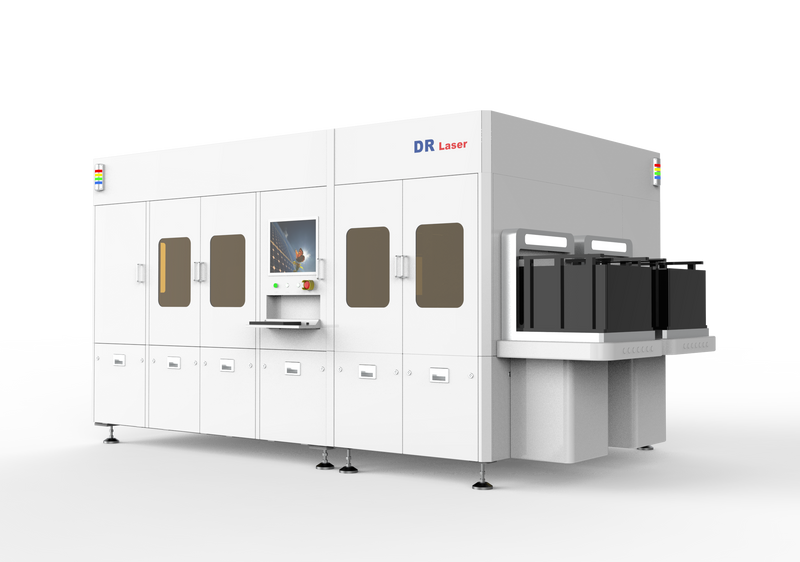

ThruGlas CE-510 — Panel-Level Wet Etching (TGV)
TG-CE-510Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
DR Laser · Semiconductor · Advanced Display · Production-scale equipment
Applications
- Panel-level wet etching (LACE step 2)
- Glass interposers · Glass core substrates
- Mini/Micro LED panel manufacturing
Technical Notes
- Operation flow: Load cassette → Vacuum & wetting → Single-chamber etching & QDR rinsing → FR ultrasonic cleaning → Heated N₂ drying → Unload.
- Chemistry tuned under DR Laser's LACE technology for uniform panel-scale etching.
- Source: DR Laser ThruGlas brochure (2025).
This is a quoted product. Pricing, lead time, and final configuration depend on substrate, throughput, and integration requirements. Use the Contact Sales button to start an RFQ — WaveQuanta acts as DR Laser's regional partner and will route your inquiry to the BD team in Singapore.
Related Reading — Strategic Intelligence
Through-Glass Vias & Glass-Core Substrates — The Glass Interconnect Stack (2026 Report)
106-page deep-dive on the TGV technology chain, 60+ players across US/EU/Japan/Korea/China/Taiwan, reconciled market models, and an investment / partner / buy / pass framework — strategic context for evaluating ThruGlas equipment in your roadmap.
| Models | ThruGlas CE-510 |
|---|---|
| Process Level | Panel-level wet etching |
| Substrate Material | Quartz / Schott BF33 / AF32 / Corning EXG / Corning SG3.4 |
| Substrate Size | 650 × 650 mm |
| Substrate Thickness | 0.1–1.1 mm |
| Loading / Unloading | Manual, trolley / cart |
| Main Build | High-strength SUS304 frame; acid & alkali resistant PP cover |
| Etching Chamber | Circulation, overflow, automatic refilling (low-fluid level) |
| Wetting Module | Ultrasonic + Vacuum + Overflow |
| Rinsing Module | QDR: top-spray, base water submerge |
| FR Module | 80 / 120 kHz, adjustable power |
| Discharge / Refill | Automatic mode available |
| Footprint (L×W×H) | 4300 × 2300 × 2700 mm (customisable on request) |
| Pass-line | 1000 ± 20 mm |
| Electrical | 3-phase 380 V, 50 Hz |
| Waste Discharge | Facility-connected, or independent tank storage |
Operation flow: Load cassette → Vacuum & wetting → Single-chamber etching & QDR rinsing → FR ultrasonic cleaning → Heated N₂ drying → Unload.
Chemistry tuned under DR Laser's LACE technology for uniform panel-scale etching.
Source: DR Laser ThruGlas brochure (2025).
Source: DR Laser manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.

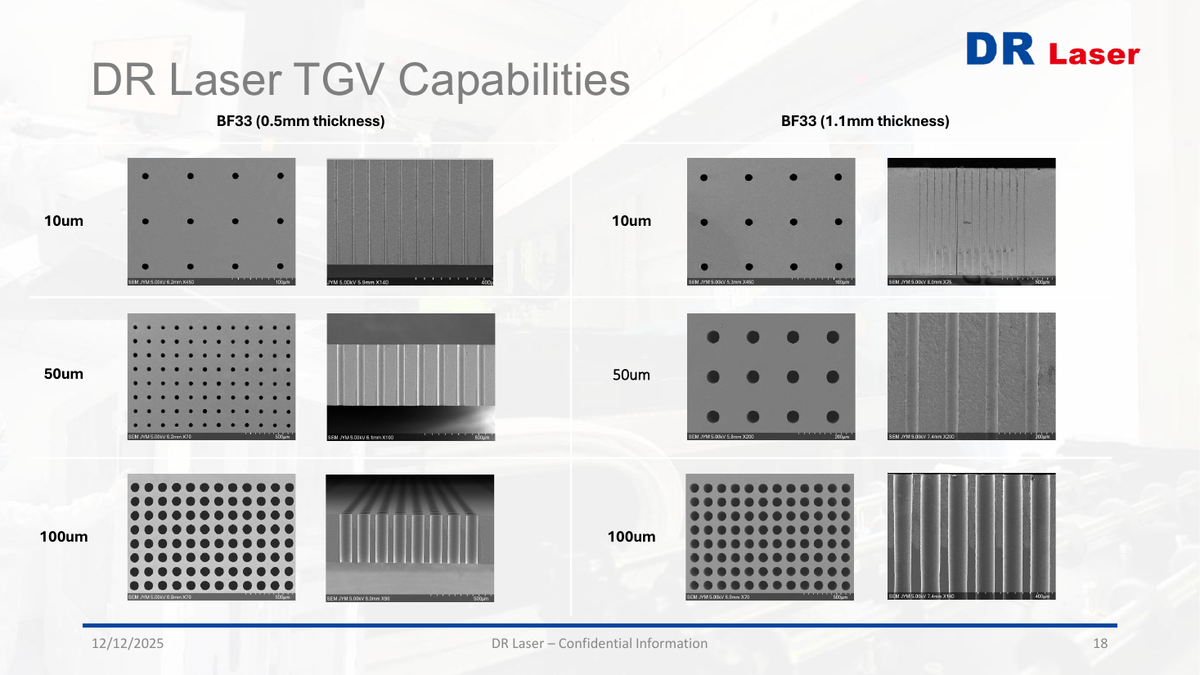

dr-laser-thruglas-ce-510 — thruglas p18 bf33 micrographs
Product Family: TGV Micro-Drilling Equipment — ThruGlas Series (6 variants)
