Eccentric Keys 85EK-08
85EK-08$13.24
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

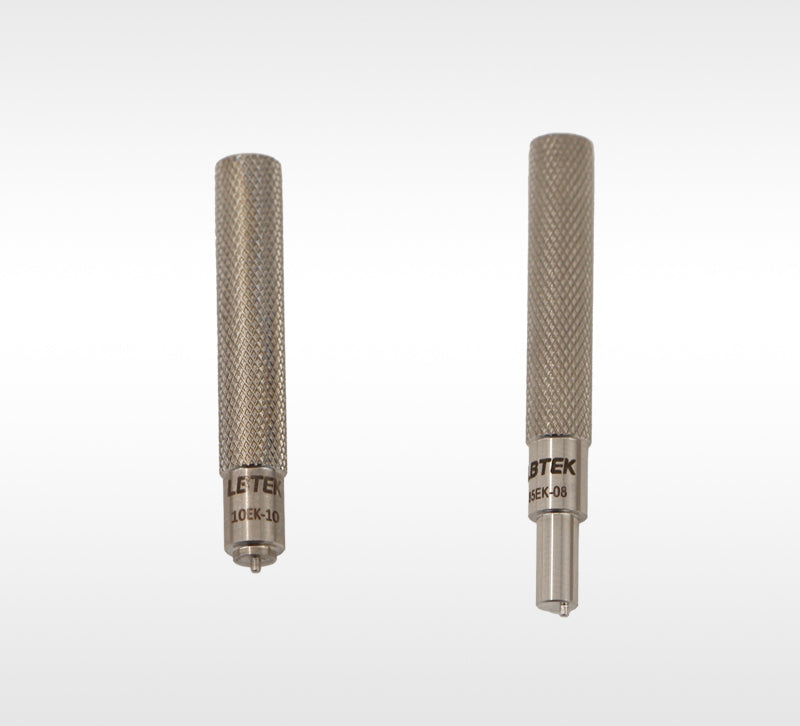

The LBTEK eccentric adjustment lever is used to adjust fiber optic couplers. By rotating the eccentric adjustment lever, the adjustable focusing part of the coupler can be moved. Currently, there are two models of eccentric adjustment levers available: 85EK-08 and 10EK-10, with adjustment ranges of ±0.8mm and ±1mm respectively. The 85EK-08 eccentric adjustment lever is suitable for the three-axis FP3 series, while the 10EK-10 eccentric adjustment lever is compatible with the focus-adjustable ADFC series.
- Material: 303 stainless steel
- Surface treatment: pickling and passivation
- Eccentric rotating lever with knurled pattern
- Adjustment range: ±0.8mm, ±1mm
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

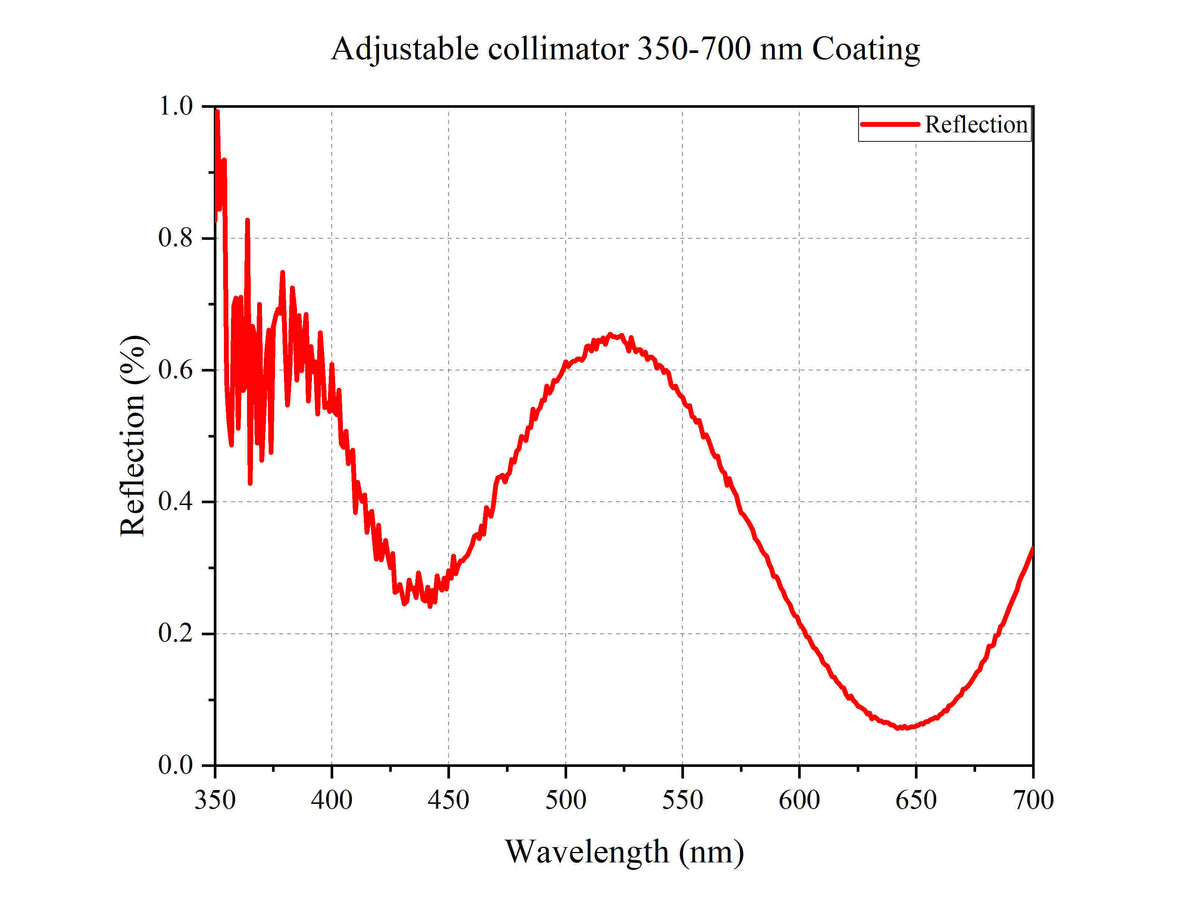

Curve - Adjustable collimator 350-700 Coating

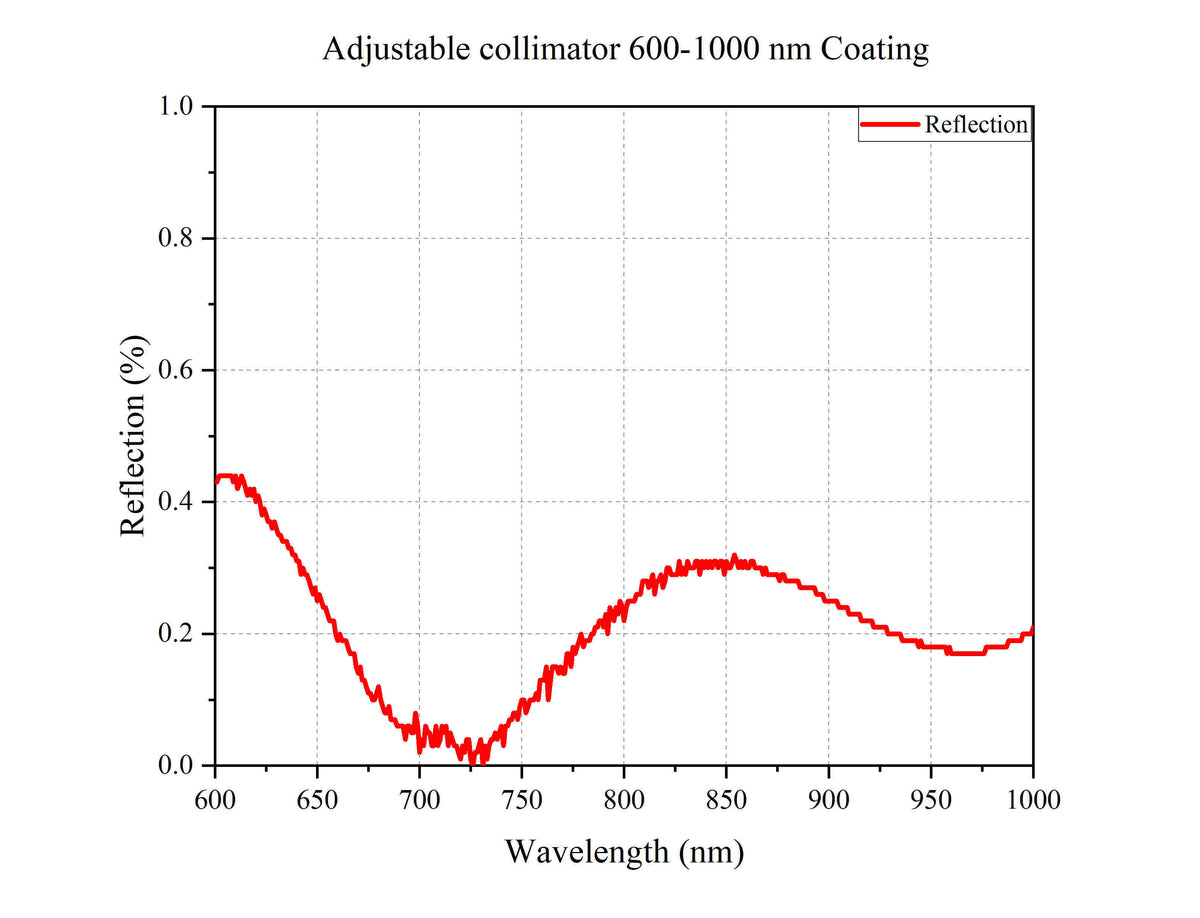

Curve - Adjustable collimator 600-1000 Coating

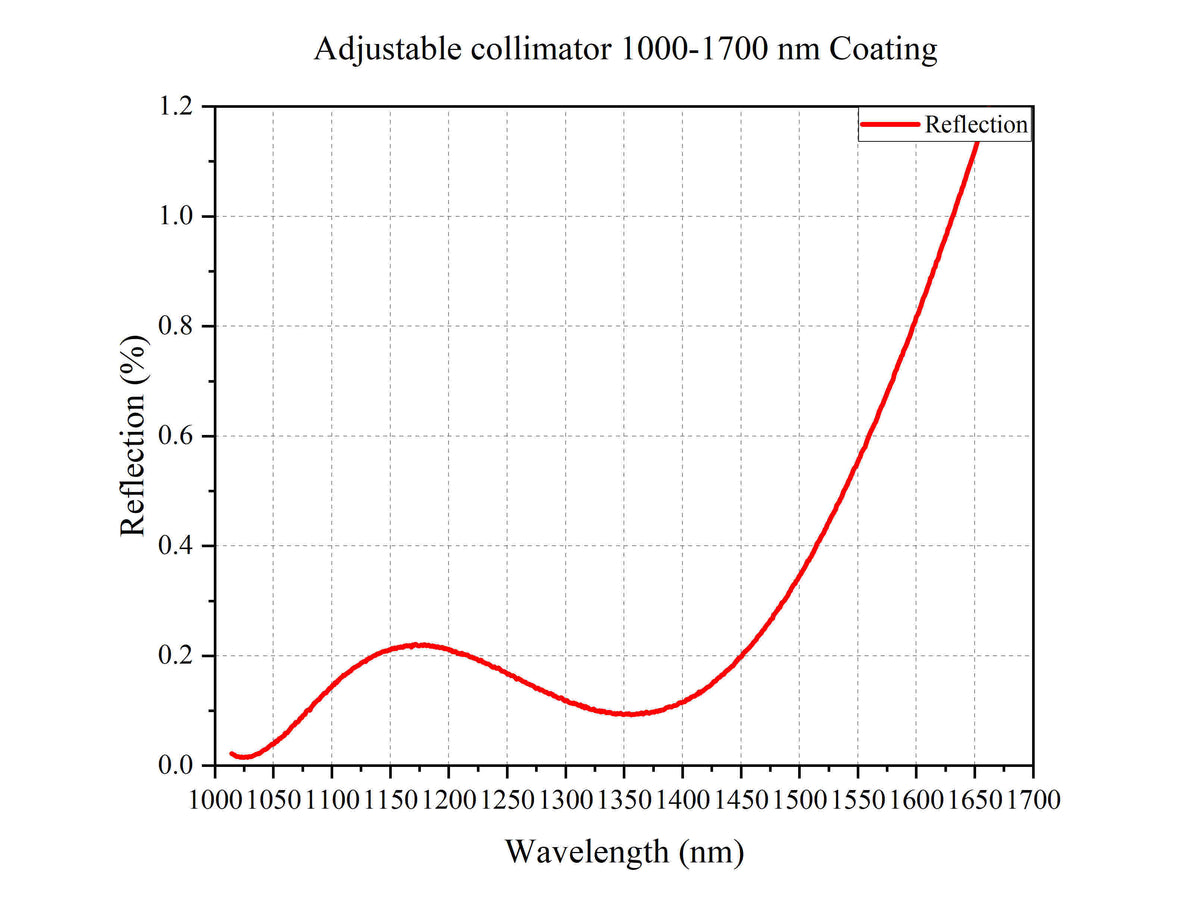

Curve - Adjustable collimator 1000-1700 Coating
Product Family: Eccentric Keys (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Eccentric Keys 85EK-08 Current |
85EK-08
| — | — | — | |
| Eccentric Keys 10EK-10 |
10EK-10
| — | — | — | View |
