Economy Thin Film Circular Polarizers LCP25-VIS-M
LCP25-VIS-M$223.48
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Economy Thin Film Circular Polarizer — Model LCP25-VIS-M
Left-handed circular polarizing film / N-BK7, operating wavelength 400-700 nm, clear aperture Ø20.0 mm, key spec >99%.
Overview
LBTEK Economy Thin Film Circular Polarizers convert linearly polarized light into circularly polarized light by combining a linear polarizing film with a quarter-wave retarder, sandwiched between N-BK7 substrates. Available in left-handed (LCP) and right-handed (RCP) variants for 400-700 nm. Suitable for low-cost circular polarization applications with high ellipticity uniformity (>99%).
Key Features
- Operating Wavelength: 400-700 nm
- Clear Aperture: Ø20.0 mm
- Optical component material: Left-handed circular polarizing film / N-BK7
- Anti-reflective coating: Ravg<0.5%@ 400-700 nm, 0°AOI
- Anti-reflective coating wavelength range: 400 nm-700 nm
- Transmitted Wavefront Error (TWE) (@633 nm): λ @50%CA, 2λ @90%CA
- Surface finish (scratches/pits): 40/20
Applications
- Circular polarization filtering for imaging and inspection
- Stress birefringence analysis
- Polarization-insensitive photometry
- 3D imaging and display
- Cost-effective polarization conversion in scientific instruments
| Operating Wavelength | 400-700 nm |
| Transmitted Wavefront Error (TWE) (@633 nm) | λ @50%CA, 2λ @90%CA |
| Optical component material | Left-handed circular polarizing film / N-BK7 |
| Transmitted light deflection (without mechanical housing installed) | <2 arcmin |
| Clear Aperture | Ø20.0 mm |
| Transmitted light deflection (with mechanical housing installed) | <10 arcmin |
| Mechanical housing diameter | Ø25.4 mm |
| Angle of Incidence (AOI) | ±15 ° |
| Surface finish (scratches/pits) | 40/20 |
| Anti-reflective coating | 400 nm-700 nm |
| Operating Temperature | 0-60 °C |
| Reflectivity | Ravg<0.5%@ 400-700 nm, 0°AOI |
| Damage threshold | 0.06 J/cm²@532 nm, 10 ns, 10 Hz; 0.077 J/cm²@532nm, 122.7 fs, 50 kHz, Ø7.919 μm (Single Pulse); 0.066 J/cm²@532nm, 122.7 fs, 100 Hz, Ø7.919 μm (100 Pulses) |
| Ellipticity Uniformity | >99% |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

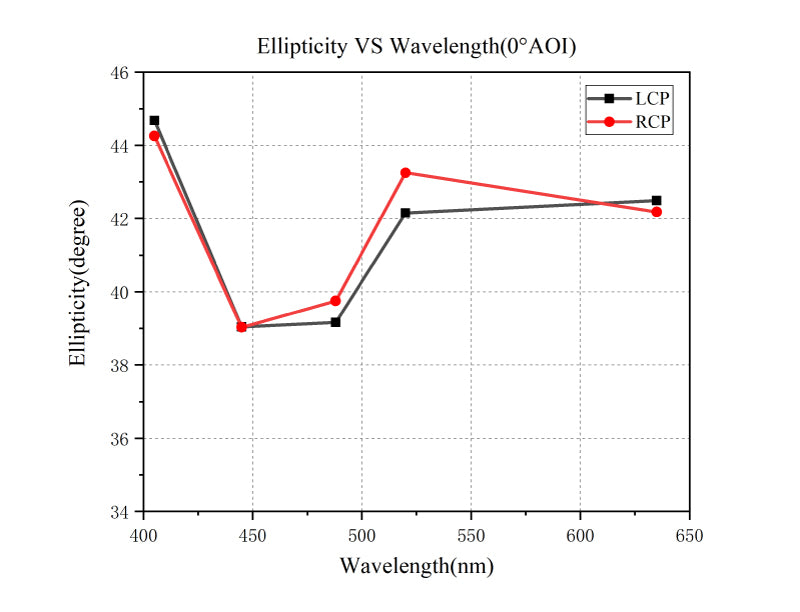

Curve 1
Product Family: Economy Thin Film Circular Polarizers (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Economy Thin Film Circular Polarizers RCP25-VIS-M |
RCP25-VIS-M
| Ø25.4 mm | Ø20.0 mm | 400-700 nm | View |
| Economy Thin Film Circular Polarizers LCP25-VIS-M Current |
LCP25-VIS-M
| Ø25.4 mm | Ø20.0 mm | 400-700 nm |
