Fan-out multimode fiber bundle FBY2001-HO-PC-2
FBY2001-HO-PC-2$598.99
In Stock· Ships in 5.0 weeks
Key Specifications
Wavelength
300.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

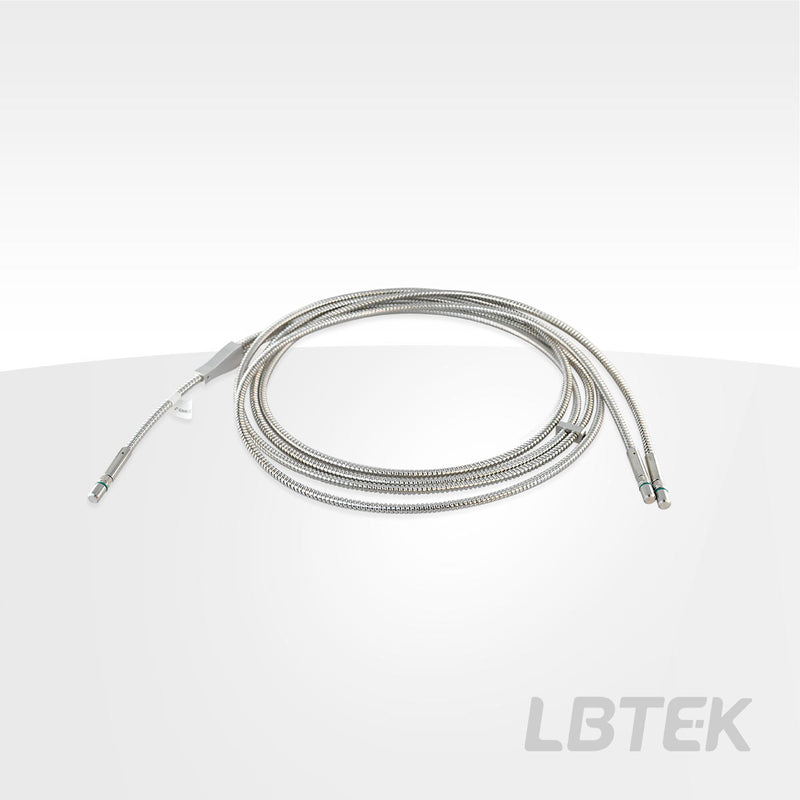

LBTEK 1x2 bifurcated fiber optic bundle, also known as a fan-out fiber bundle or Y-type fiber bundle, consists of two multimode fibers within the same sheath that bifurcate into two separate sheaths, each containing one fiber. The fiber sheaths are made of stainless steel, ensuring long-lasting durability. It is an ideal choice for spectral analysis and process monitoring, biosensing, and endoscopy applications, with an optional wavelength range of 250-2400 nm. Currently, FC/PC and SMA connector types are available. LBTEK also offers customized multimode fiber optic bundle services, including fiber length, sleeve diameter, and operating wavelength. For customization needs, please contact technical support.
- 1x2 Fiber Optic Splitter
- High Hydroxyl/Low Hydroxyl Material Optional
- Connector: SMA, FC/PC Optional
| Operating Wavelength | 300-1200 nm |
| Fiber core diameter | 200 μm |
| Fiber optic bundle type | 1 minute 2 seconds |
| Length | 2+0.1 / -0.0 m |
| Connector Type | FC/PC |
| Cladding diameter | 220 μm |
| Coating layer diameter | 270 μm |
| NA | 0.22 |
| Fiber core material | High Hydroxyl Quartz Material |
| Cable Construction | 6mm Stainless Steel Cable |
| Length Range | 21/42 mm |
| Cable Length | 0.1±0.03 m |
No CAD drawings available for this product.
