Fiber Coupling Base and Accessories — Model FP-SM1
✔ In Stock — Ships Today

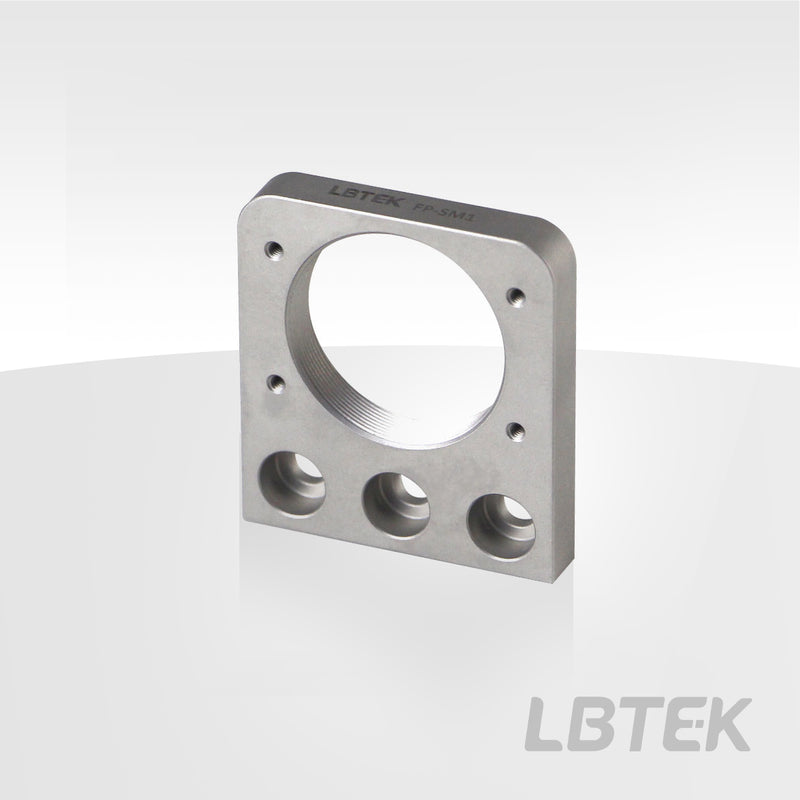

The fiber coupler wall plate from LBTEK can be mounted on the lateral surface of the fiber coupler mounting base using the two included M4 screws. It features four M2 tapped holes for connection with the fiber coupler screw threads and includes an SM1 internal tapped hole, compatible with LBTEK's Ø25.4 mm lens tubes and other SM1 tapped components. The purchase comes with an SM1 retaining ring.
Key Features
- Material: 303 Stainless Steel;
- Surface Treatment: Sandblasting + Passivation;
- SM1R retaining ring is included;
- M2 tapped hole for fiber coupler installation;
Application
The fiber coupler wall plate is mounted on the side of the FP-50.
| Material | 303 Stainless Steel |
| Surface Treatment | Sandblasting + Passivation |
| compatible with coaxial systems | No |
| Countersunk hole specifications | M4 |
| Thread hole specifications | SM1/M2 |
| Size | 42 mm×38 mm×6.5 mm |
| Weight | 0.05 kg |
| Hex Key Wrenches Included | M4×10 Socket Head Cap Screw ×2, M2×6 Socket Head Cap Screw ×4, SM1R Retaining Ring ×1； |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fiber Coupling Base and Accessories (5 variants)
