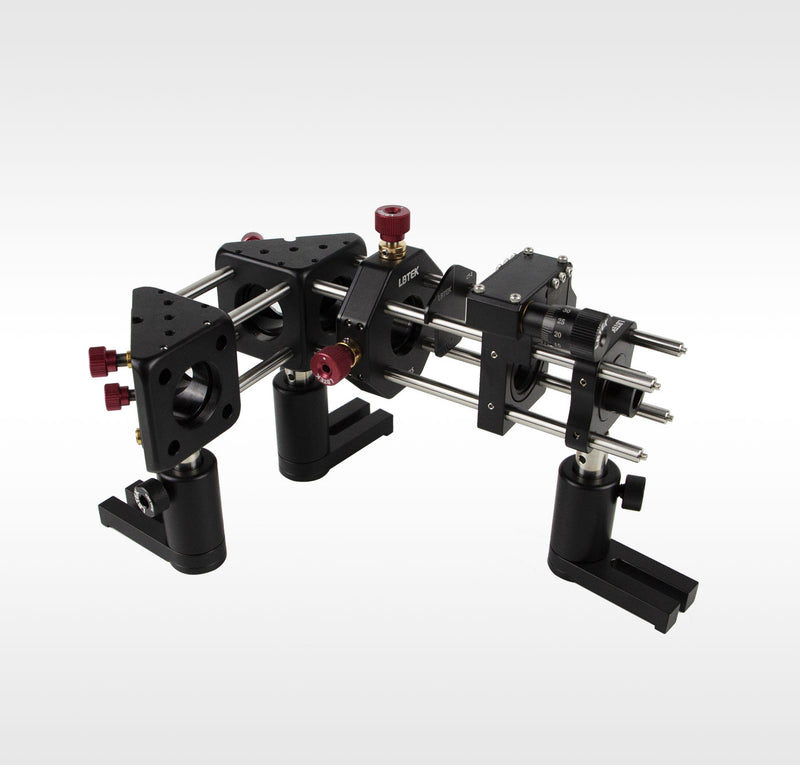

Fiber Optic Coupling System Mechanical Components SLCS-V1

The simple fiber coupling system provided by LBTEK is used for manually coupling spatial laser beams into fiber optic patch cords. In addition to the basic mechanical components, it includes a 30 mm coaxial system alignment plate CT-1, ensuring the collimation of incident light while keeping the beam centered on the optical components as much as possible. Furthermore, the fiber optic patch cord interface type depends on the fiber collimator selected by the user (which needs to be purchased separately by the user). First, observe whether the beam is precisely centered on the fiber collimator, then confirm whether the output spot shape is circular. If both conditions are met, insert the fiber and monitor at the fiber output end. Adjust the two mirror mounts in the collimation section and the MFT to achieve higher coupling efficiency. Note: Only mechanical components are included; optical components need to be purchased separately. For purchasing details, please refer to the technical specifications.
