Fiber Polarization Controllers FT-P007-N

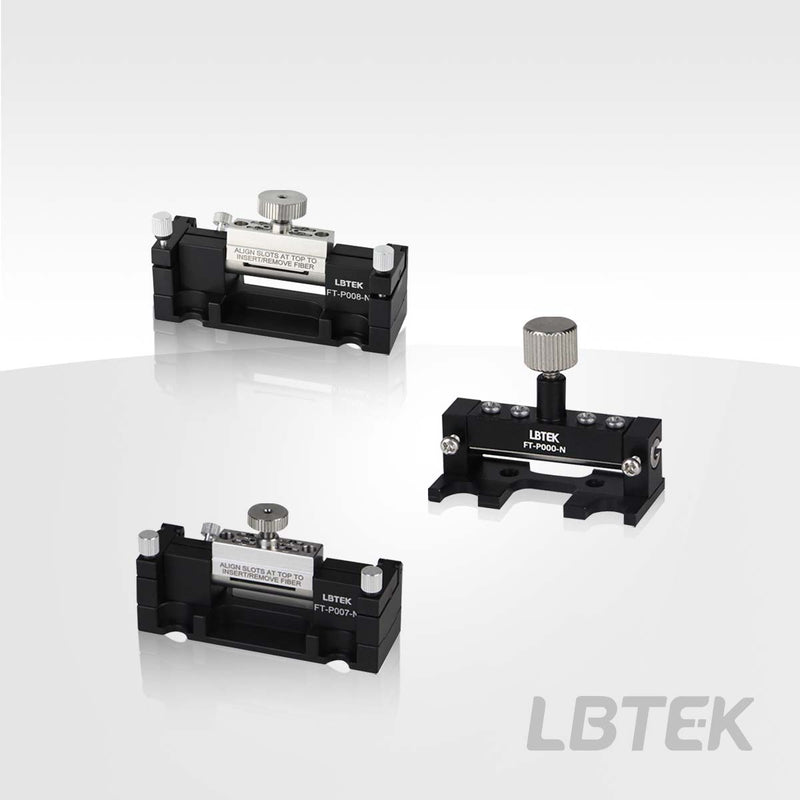

LBTEK offers two types of squeeze-type polarization controllers, primarily designed for fibers with Ø900 µm protective sleeves or Ø250 µm bare fibers. Each polarization controller consists of a rotatable fiber squeezer and two fiber clamping blocks. The polarization controller generates stress-induced birefringence within the fiber through mechanical squeezing, effectively functioning as a rotatable variable waveplate. The equivalent waveplate's polarization angle and retardation can be adjusted according to user requirements, enabling the conversion of any input polarization state into the desired output polarization state. The squeeze-type polarization controller reduces inherent loss and back-reflection loss, serving as an alternative to traditional free-space polarization controllers composed of two quarter-wave plates and one half-wave plate. Among them, the FT-P007-N and FT-P008-N models feature knob screws for fiber locking, offering more convenient operation compared to the FT-P000-N model with cross screws for fiber locking.

• Polarization Effect Achieved by Fiber Squeezing
• Compact Design
• Applicable to Fibers with Ø900 µm Tight-Buffered Jacket or Ø250 µm Bare Fibers
