Fixed Clamping Mounts — Model FHM1
✔ In Stock — Ships Today

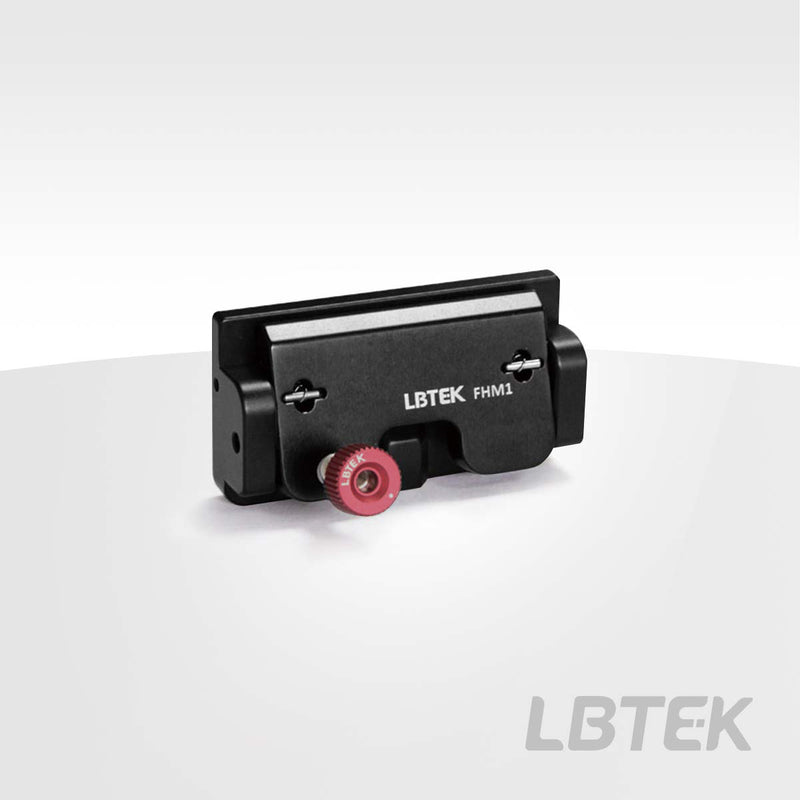

The LBTEK Fixed Clamping Mounts can be used to secure round or rectangular optical components. It is equipped with tension springs to provide preload during optical component installation, facilitating easy clamping. Additionally, it features thumb screws to precisely adjust the clamping thickness of the mount and firmly secure the optical components. The mount is compatible with round and rectangular plates ranging from 12.7 mm to 50.8 mm in size, accommodating optical components with a maximum thickness of 8 mm. The base of the mount includes M4 threaded mounting holes for connecting to Ø12.7 mm stainless steel optical posts.
Key Features
- Adjustable clamping thickness
- Compatible with both round and rectangular optical components
- Bottom M4 threaded hole for optical posts
Application
Fixed clamping mounts are commonly used to secure optical filters.
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Bottom threaded hole specifications | M4 |
| Maximum applicable thickness of optical components | 8 mm |
| Bottom threaded hole specifications | 0.25 mm/rev |
| Size | Spring force preload, threaded pair spiral tightening |
| Attribute 463 | Arc-shaped silicone gasket |
| Thread hole specifications | 60 mm |
| Applicable optical component width range | 12.7 mm～50.8 mm |
Product Family: Fixed Clamping Mounts (1 variants)
