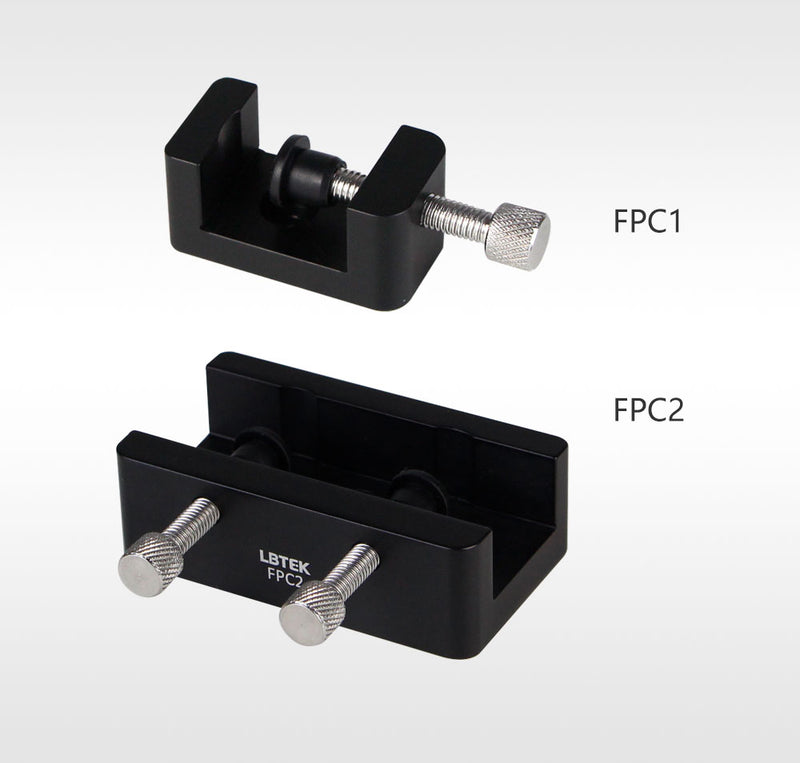

Fixed Plate Holders — Model FPC2
✔ In Stock — Ships Today
The LBTEK Fixed Plate Holders can be used to secure round or rectangular optical components. The clamping thickness of the holder is adjustable, suitable for optical components with a width range of 20 mm to 150 mm and a maximum thickness of 12 mm. The locking screw tip is made of silicone, effectively preventing damage to the clamped optical components. The 23 mm fixed plate holder features an M4 countersunk hole at the bottom, while the 77 mm fixed plate holder has one M6 and two M4 countersunk holes, allowing connection to Ø12.7 mm, Ø25 mm, and Ø38 mm stainless steel optical posts.
Key Features
- Adjustable clamping thickness
- Compatible with both round and rectangular optical components
- Material of locking screw tip is silicone
- Capable of holding large optical components
Application
Fixed plate holders are commonly used to secure optical filters.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Plate Holders (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fixed Plate Holders FPC1 |
FPC1
| — | — | — | View |
| Fixed Plate Holders FPC2 Current |
FPC2
| — | — | — |
