Fixed Cylindrical Lens Mounts — Model CLF-1
✔ In Stock — Ships Today

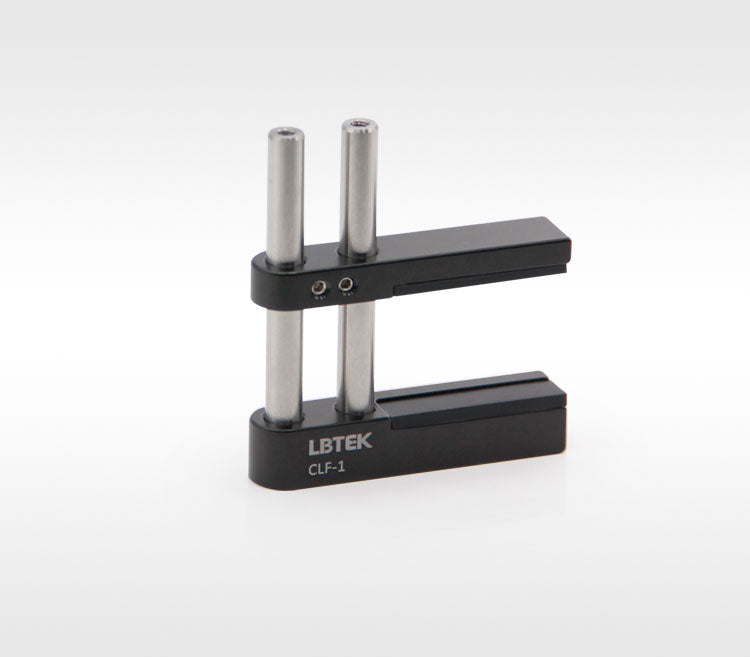

The LBTEK Cylindrical Lens Mount is commonly used for rectangular optical components. Each mount consists of two clamping arms with rubber pads. The upper clamping arm can slide along the mounting post and is equipped with a set screw to secure the clamping arm's position on the post. The lower clamping arm is non-sliding and features an M4 threaded hole at the bottom for connecting to Ø12.7 mm stainless steel optical mounting posts. If taller optical components need to be mounted, the length of the post can be extended by attaching an additional Ø6 mm coaxial system mounting post.
Key Features
- Maximum clamping height: 40 mm
- Cushioned rubber pads protecting optical components
- Bottom M4 threaded hole for connecting to posts
Application
The two arms of the cylindrical lens mounts are commonly used for mounting rectangular optical components.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Cylindrical Lens Mounts (1 variants)
