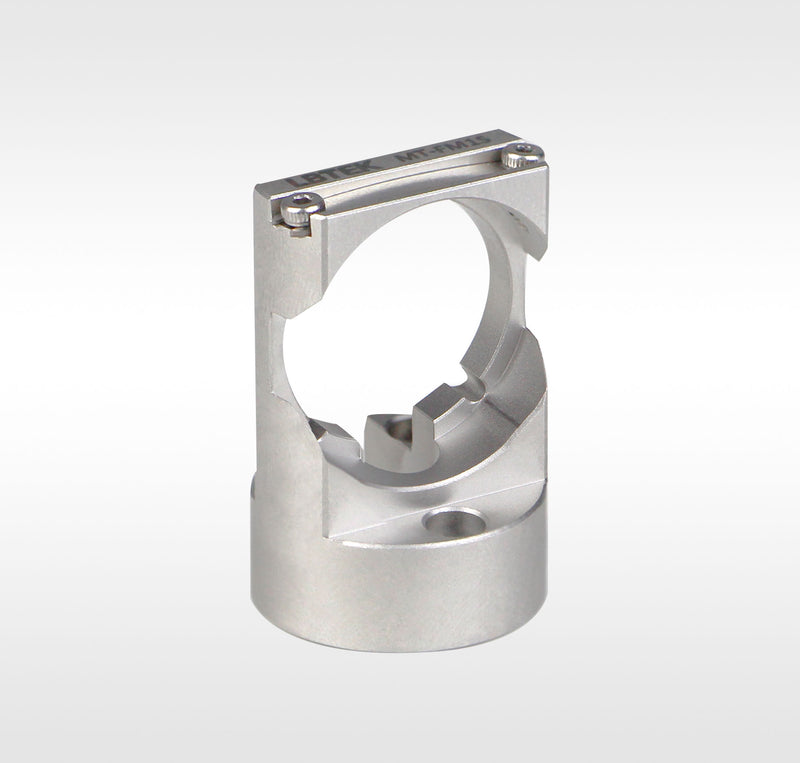

Fixed Optical Component Mounts MT-FM1S
MT-FM1S$168.97
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Fixed Optical Component Mounts MT-FM1S from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Key specification: clear aperture: 22.4 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today
LBTEK Compact Stainless Steel Fixed Mount, suitable for mounting optical components with a diameter of Ø25.4 mm. The fixed mount secures the optical component through flexure piece and fixing screws. This method effectively disperses the force generated during spring fixation, providing a stable mounting solution under low-stress conditions. The minimum thickness of the optical component that can be mounted with this fixed mount is 1.5 mm, and the clear aperture is 22.4 mm. The base of the fixed mount features 1 M4 threaded mounting hole and 3 M2.5 threaded mounting holes, allowing connection to Ø12.7 mm or Ø25 mm optical posts. For other specifications, please contact LBTEK Technical Support.
Key Features
- For low-stress mounting of Ø25.4 mm optics
- Flexure piece mounting optical components
- Fixed mount with compact structure
Application
The 1-inch optical component is clamped in a fixed mount.
| Clear Aperture | 22.4 mm |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Optical Component Mounts (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fixed Optical Component Mounts MT-FLF2S |
MT-FLF2S
| — | — | — | View |
| Fixed Optical Component Mounts MT-FLF1S |
MT-FLF1S
| — | — | — | View |
| Fixed Optical Component Mounts MT-FLF05S |
MT-FLF05S
| — | — | — | View |
| Fixed Optical Component Mounts MT-FM1S Current |
MT-FM1S
| — | — | — |
