Fixed vacuum-compatible optical component mount VSS-MT-FLF05S
VSS-MT-FLF05S$162.09
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Fixed vacuum-compatible optical component mount VSS-MT-FLF05S from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Key specification: clear aperture: 11.5 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

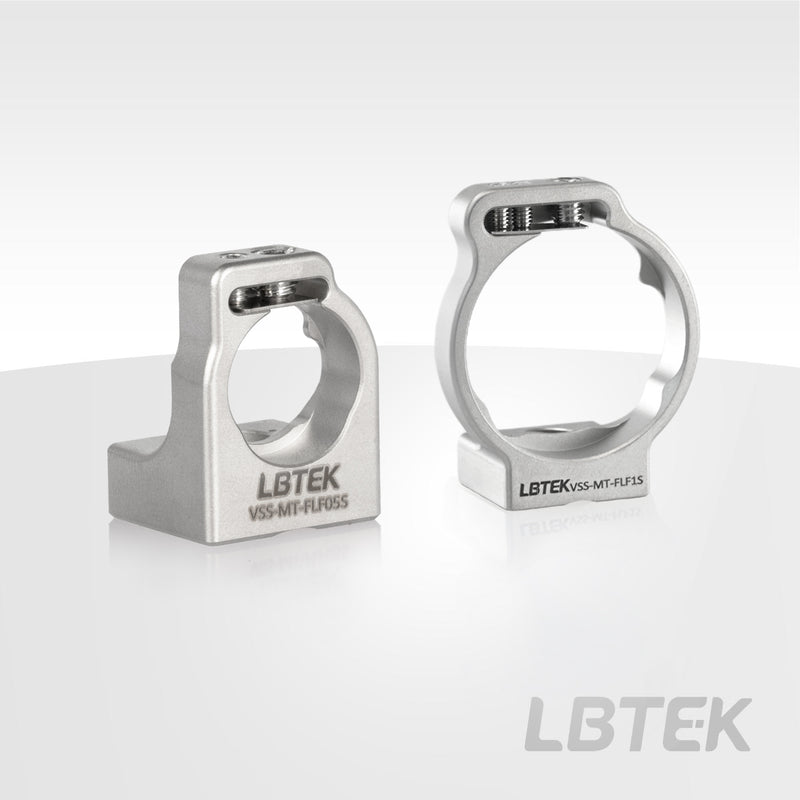

LBTEK Fixed Vacuum Stainless Steel Optical Mount is designed for mounting optical components with a diameter of Ø12.7 mm or Ø25.4 mm. The optical component mounting slot features a cutout to increase the clear aperture, making it particularly suitable for installing beam splitters at a 45° angle of incidence, as well as mirrors. The optical component is secured by flexible spring leaves and fixing screws, ensuring stable mounting. The VSS-MT-FLF1S/VSS-MT-FLF05S mount accommodates optical components with a minimum thickness of 2 mm/2 mm, provides a clear aperture of 23 mm/11.5 mm, and has a center distance of 19 mm from the base to the optical component. The mount base includes M4 threaded mounting holes and comes with M4 vacuum screws (with air holes) for connecting to Ø12.7 mm or Ø25 mm vacuum optical posts.
Key Features
- Used for mounting Ø12.7 mm or Ø25.4 mm optical elements
- Mounting surface has notches with larger clear aperture
- Three-point contact mounting design for precise optical element centering
- Flexible spring leaf and set screws for securing optical elements
Application
The fixed vacuum optical mount is used in conjunction with vacuum rods and vacuum clamps.
| Clear Aperture | 11.5 mm |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed vacuum-compatible optical component mount (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fixed vacuum-compatible optical component mount VSS-MT-FLF1S |
VSS-MT-FLF1S
| — | — | — | View |
| Fixed vacuum-compatible optical component mount VSS-MT-FLF05S Current |
VSS-MT-FLF05S
| — | — | — |
